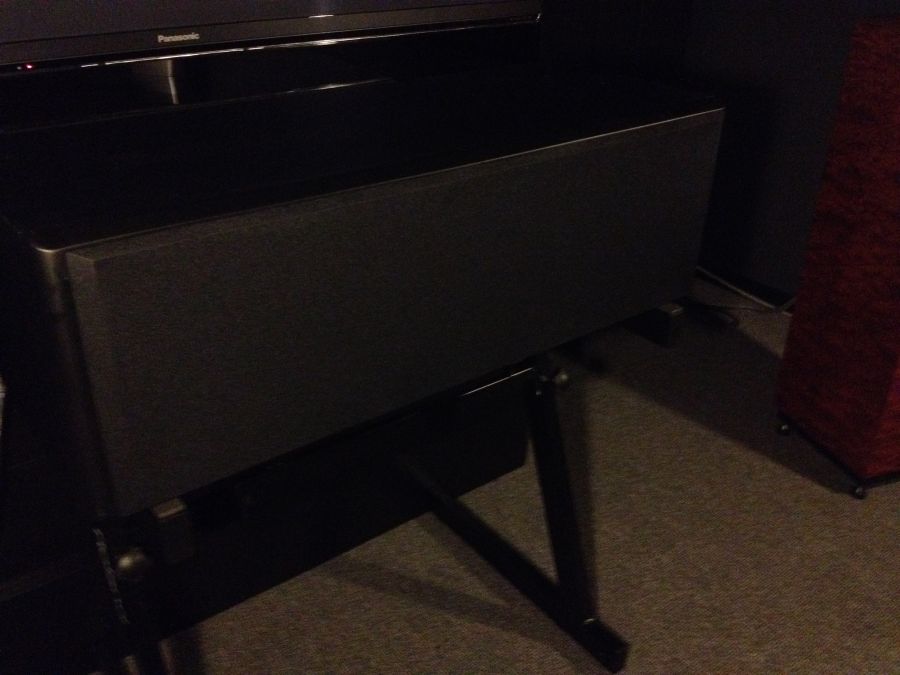

Denne Adam Audio GTC777 er konfigurert som senterkanal.
Man kan flytte på elementene selv hvis man vil ha en annenlayout.
Må hentes da jeg ikke har emballasjen.
Nypris er 9000 kr.
http://www.avshop.no/GTC77-LCR-Black...0186/p10520247
The new reference for home cinema sound
The Grand Theatre Components from ADAM Audio now for the first time offers the high precision sound found in professional studios for your home theatre.
The GTC Series consists of four components that can be individually combined. Each component incorporates ADAM?s own transducer technology, the X-ART tweeter, and high-grade midwoofers. The two bigger speakers have integrated segments on which the drivers are mounted. These segments can be twisted by 90 degrees so that the speakers can function both in a horizontal and vertical setup. In addition this feature allows the easy and efficient adjustment of the tweeter according to the position of the audience.
"These speakers delighted us with their incredible ease at any volume level, the delicate high end delivered by the air-motion ribbon tweeter, its spectacular imaging, and its lifelike timbre with percussion instruments. (...) 11 on a 10 scale for sound."
Michael Fremer, Home Theater

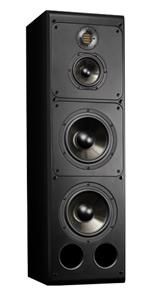

GTC77
The middle sized speaker of this series incorporates, in addition to the X-ART tweeter, two bigger (7?) subwoofers and an additional midwoofer, that will give the mid-frequencies which are essential for any musical experience, that additional terseness and vividness typical for ADAM speakers.
Basic technical data at a glance:
? X-ART tweeter
? 4? midwoofers
? 2 x 7? subwoofers
? Frequency response: 38Hz - 50kHz
? Efficiency: 88dB/W/m
? Power handling: 150W / 230W
? Input impendance: 4?
? Max peak: 118dB
? Weight: 20.6kg
? Dimensions H x W x D (mm): 810 x 260 x 317
Bruksanvisning: http://www.adam-audio.com/files/downloads/GTC_man.pdf
Man kan flytte på elementene selv hvis man vil ha en annenlayout.
Må hentes da jeg ikke har emballasjen.
Nypris er 9000 kr.
http://www.avshop.no/GTC77-LCR-Black...0186/p10520247
The new reference for home cinema sound
The Grand Theatre Components from ADAM Audio now for the first time offers the high precision sound found in professional studios for your home theatre.
The GTC Series consists of four components that can be individually combined. Each component incorporates ADAM?s own transducer technology, the X-ART tweeter, and high-grade midwoofers. The two bigger speakers have integrated segments on which the drivers are mounted. These segments can be twisted by 90 degrees so that the speakers can function both in a horizontal and vertical setup. In addition this feature allows the easy and efficient adjustment of the tweeter according to the position of the audience.
"These speakers delighted us with their incredible ease at any volume level, the delicate high end delivered by the air-motion ribbon tweeter, its spectacular imaging, and its lifelike timbre with percussion instruments. (...) 11 on a 10 scale for sound."
Michael Fremer, Home Theater
GTC77
The middle sized speaker of this series incorporates, in addition to the X-ART tweeter, two bigger (7?) subwoofers and an additional midwoofer, that will give the mid-frequencies which are essential for any musical experience, that additional terseness and vividness typical for ADAM speakers.
Basic technical data at a glance:
? X-ART tweeter
? 4? midwoofers
? 2 x 7? subwoofers
? Frequency response: 38Hz - 50kHz
? Efficiency: 88dB/W/m
? Power handling: 150W / 230W
? Input impendance: 4?
? Max peak: 118dB
? Weight: 20.6kg
? Dimensions H x W x D (mm): 810 x 260 x 317
| Mid-Woofer | |
| Number | 2 |
| Basket Ø | 7" (175 mm) |
| Voice coil Ø | 1.5" (38 mm) |
| Cone material | Carbon/Rohacell/Glass Fiber |
| Midrange | |
| Number | 1 |
| Basket Ø | 4" (107 mm) |
| Voice coil Ø | 1" (25 mm) |
| Cone material | Carbon/Rohacell/Glass Fiber |
| Tweeter | |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity transform ratio | 4:1 |
| Diaphragm weight | 0.17 g |

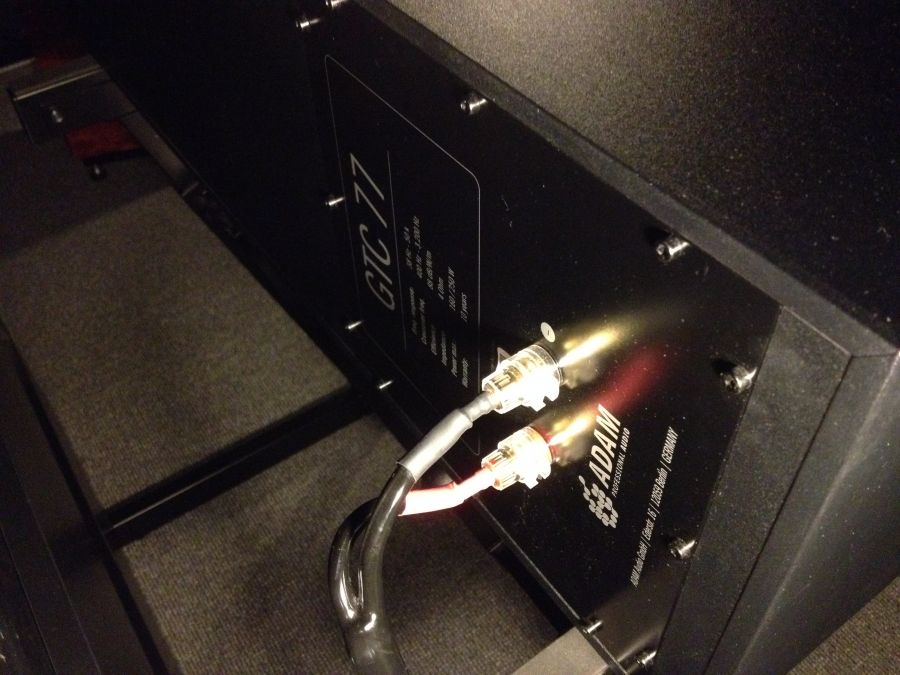

| Input connectors | |
| Analog | Banana |
| Location | Rear |
| General data | |
| Power handling | 150 W / 230 W |
| Efficiency | ?88 dB / W / m |
| Midrange/tweeter unit | rotatable, changeable with woofer unit |
| Frequency response | 38 Hz - 50 kHz |
| Max SPL with sine wave acoustic 100Hz to 3kHz at 1m | ?110 dB |
| Max SPL per pair at 1m | ?118 dB |
| Crossover frequencies | 300 / 3200 Hz |
| Impedance | 4 Ohm |
| Weight | 45.4 lb (20,6 kg) |
| Height x Width x Depth | 32" (810 mm) x 10" (260 mm) x 12.5" (317 mm) |
| Warranty | 10 Years |
Bruksanvisning: http://www.adam-audio.com/files/downloads/GTC_man.pdf
