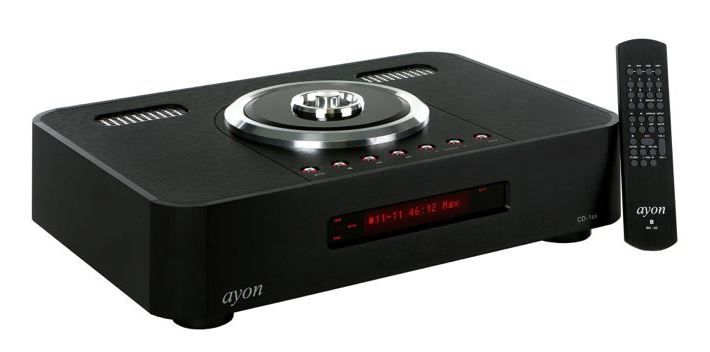

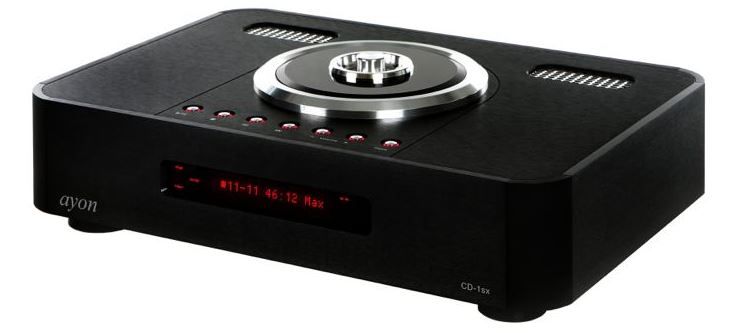

Vi har fått inn et srøkent eksemplar av Ayon cd-1sx i innbytte. Denne spilleren fremstår som ny og er en 2016 modell. Selges H.B.O. 16.000.- . Kom med bud.
FeaturesFull-featured Tube Top Loader CD-PlayerClass-A triode vacuum-tube output stage for single-ended & balanced operationSignal PathWe believe that the simplest circuits work best together with the shortest signal path. That is why our pre-amplifiers to date have used single-ended pure class-A circuitry. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.
JWK Audio/Sound of heavenTlf:+47 464 29 861E-mail: kontakt@soundofheaven.asHjemmeside: www.soundofheaven.as
FeaturesFull-featured Tube Top Loader CD-PlayerClass-A triode vacuum-tube output stage for single-ended & balanced operationSignal PathWe believe that the simplest circuits work best together with the shortest signal path. That is why our pre-amplifiers to date have used single-ended pure class-A circuitry. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.
- Logical sequenced soft-start power up for extended tube life
- Warm up function
- 0dB negative feedback (of any kind )
- Ultra short signal path
- Simplest direct circuit path for purest musical sound and high reliability
- Low output impedance for driving long runs interconnect to an amplifier, and any tube or solid state power amp
- No solid state devices in the analog tube output (signal path )
- Minimal discrete wiring for optimum signal propagation
- No followers or buffers in the signal path
- No DC servo that degrades the signal
- High quality parts throughout
- Fully hand assembled to insure the highest level of craftsmanship
- Separate analog output stage for left and right channel
- Internal hardware PCM upsampler for CD sources to 24/192K (can be disabled)
- Digital input - S/PDIF (RCA), & TosLink
- USB input ? 24/192 kHz ( asynchronous) and DSD
- Digital output - S/PDIF (RCA)
- R-Core / Low noise ? insulated power transformer for digital & analog
- Innovative power supply provides a high speed energy delivery on transients
- Separate and isolated power supplies over each stage of amplification
- AC power line filter to avoid noise and hash from entering into the unit.
- Tube rectification for analog output stage
- 10 separate voltage regulators
- Selected, premium quality passive components used in all applications
- High speed & high quality audiophile grade coupling capacitors
- High quality Special tube sockets with gold pins
- Capacitors ( MKP 2% )
- High quality ? RCA & XLR jack
- Gold-plated industrial grade PCB
- Backlit function buttons
- Modified suspension system to isolate the CD-transport from mechanical vibrations
- Anti-vibration magnetic CD-clamp system with dark acrylic CD-LID
- AC phase polarity control indicator
- The aluminium feet are resonance absorbing types
- Metal remote commander
- Chassis finish: black / chrome
CD-Player | Ayon CD-1sx |
Conversion rate | 192kHz / 32 bit & DSD |
Tube complement | 6H30 |
Dynamic range | > 116dB |
Output level @1 kHz / 0,775V -0dB Low | 0 ? 2.5 V / variable |
Output level @1 kHz / 0,775V -0dB High | 0 ? 5V / variable |
Output impedance Single-Ended-RCA | ~ 300 ? |
Output impedance Balanced-XLR | ~ 300 ? |
Digital output | 75 ? S/PDIF (RCA) |
Digital input | 75 ? S/PDIF (RCA),USB ? 24/192 kHz & DSD, TosLink |
S/N ratio | > 118 dB |
Frequency response | 20Hz - 20kHz +/- 0.3dB |
Total harmonic distortion @ 1kHz | < 0.001% |
Remote control | Yes |
Output complement | RCA & XLR |
Dimension (WxDxH) cm | 48x36x12 cm |
Weight | 13 kg |
