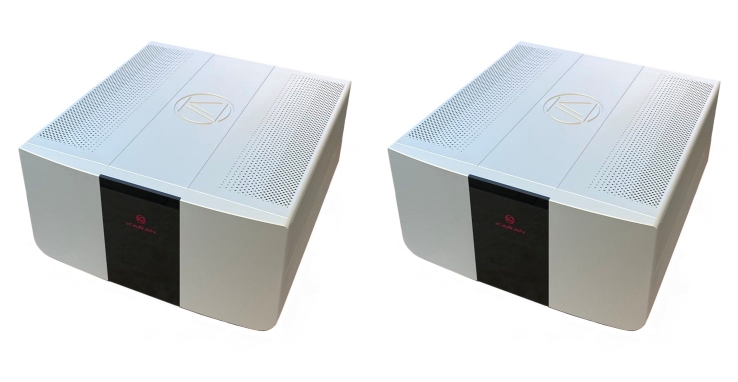

Karan Master Collection POWERb MONO – mono power amplifier
www.hifisentralen.no
Karan Master Collection er nå komplett:
LINEa, PHONOa, POWERa og POWERa mono.
LINEb, PHONOb, POWERb og POWERb mono.
Fra 1999 har Karan hatt 3 serier med effekttrinn / monoblokker og 4 serier med forforsterkere, alle komponentene er i bruk hos kunder i dag!
Technical specifications
The following data were consistently measured on random test objects and are typical of the product in question. Nominal operating mains (AC) voltage of all our products is 115V or 230V. If the mains supply voltage drops approximately 10% below its nominal value, the power output of our amplifiers will reduce itself by approximately 15%.
INPUTS: 1 balanced (XLR) and 1 unbalanced (RCA)
INPUT IMPEDANCE: 30 kOhm (balanced/unbalanced)
INPUT SENSITIVITY: 2.0 V/RMS (for max output)
GAIN: + 36dB
XLR PIN LAYOUT: PIN 1-ground, PIN 2-positive signal, PIN 3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
POWER OUTPUT: 1.200/2.100/3.600W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz,-3dB)
DISTORTION: THD 0.03%
IMD 0.03%
TRANSIENT RESPONSE: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
SIGNAL TO NOISE RATIO: > 120 dB (unweighted)
POWER SUPPLY: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC VOLTAGE: 115 V or 230 V (nominal line voltage)
AC VOLTAGE RANGE: +/- 10% (from nominal line voltage)
WARRANTY: 5 years, parts and labor
NET DIMENSIONS: 504 x 292 x 521mm (whd); 19.8 x 11.5 x 20.5 inch (whd)
NETWEIGHT: 81kg / 178lbs (each)
PACKAGE DIMENSIONS: 720 x 410 x 738mm (whd); 28.3×16.1×29 inch (whd)
PACKAGEWEIGHT: 103kg/226lbs (each)
www.monoandstereo.com
De spiller åpent, klart, gjennomsiktig, utmerket romfølelse, kropp og kontroll, ren dyp bass eller kort og godt:
De spiller MUSIKK!
De blir ikke varme ved bruk, gir meget lang levetid!
Bestillingsvare, innbytte mulig!
Pris avhengig av valutakurs!
Koster i USA 85000 USD!
Pris avhengig av kronekurs!
www.stereonet.com
positive-feedback.com
Karan Master Collection POWERb mono
Karan Master Collection POWERb MONO, det nyeste produktet i Karans nye Master Collection-serien! Den består nå av to effektforsterkere, to monoblokker og to forforsterkere. Technical specifications The following data were consistently measured on random test objects and are typical of the...
www.hifisentralen.no
Karan Master Collection er nå komplett:
LINEa, PHONOa, POWERa og POWERa mono.
LINEb, PHONOb, POWERb og POWERb mono.
Fra 1999 har Karan hatt 3 serier med effekttrinn / monoblokker og 4 serier med forforsterkere, alle komponentene er i bruk hos kunder i dag!
Technical specifications
The following data were consistently measured on random test objects and are typical of the product in question. Nominal operating mains (AC) voltage of all our products is 115V or 230V. If the mains supply voltage drops approximately 10% below its nominal value, the power output of our amplifiers will reduce itself by approximately 15%.
INPUTS: 1 balanced (XLR) and 1 unbalanced (RCA)
INPUT IMPEDANCE: 30 kOhm (balanced/unbalanced)
INPUT SENSITIVITY: 2.0 V/RMS (for max output)
GAIN: + 36dB
XLR PIN LAYOUT: PIN 1-ground, PIN 2-positive signal, PIN 3-negative signal
(when use RCA input you need to insert XLR shorting plug!)
POWER OUTPUT: 1.200/2.100/3.600W at 8/4/2ohm
(peak power output: 1.500W at 8ohm)
FREQUENCY RESPONSE: 20 Hz to 20 kHz, +/-0 dB; (DC to 300kHz,-3dB)
DISTORTION: THD 0.03%
IMD 0.03%
TRANSIENT RESPONSE: Rise and Settling time < 450 ns
Slew rate 1.500 V/us (Amplification stages)
SIGNAL TO NOISE RATIO: > 120 dB (unweighted)
POWER SUPPLY: 2pcs of 2.100VA low noise toroidal transformers,
180.000uF custom made capacitors bank
AC VOLTAGE: 115 V or 230 V (nominal line voltage)
AC VOLTAGE RANGE: +/- 10% (from nominal line voltage)
WARRANTY: 5 years, parts and labor
NET DIMENSIONS: 504 x 292 x 521mm (whd); 19.8 x 11.5 x 20.5 inch (whd)
NETWEIGHT: 81kg / 178lbs (each)
PACKAGE DIMENSIONS: 720 x 410 x 738mm (whd); 28.3×16.1×29 inch (whd)
PACKAGEWEIGHT: 103kg/226lbs (each)
Karan Acoustics Master Collection
Mono & Stereo High-End Audio Magazine: Magico - Nagra - Tidal Audio - Wilson Audio - MSB - Totaldac - Living Voice - Taiko Audio - Aries Cerat -Thrax
De spiller åpent, klart, gjennomsiktig, utmerket romfølelse, kropp og kontroll, ren dyp bass eller kort og godt:
De spiller MUSIKK!
De blir ikke varme ved bruk, gir meget lang levetid!
Bestillingsvare, innbytte mulig!
Pris avhengig av valutakurs!
Koster i USA 85000 USD!
Pris avhengig av kronekurs!
Karan Acoustics Master Collection Gains POWER Amplifiers
Following on from the LINEa and LINEb preamplifiers, Karan Acoustics has added the highly anticipated POWERa and POWERb stereo and monoblock power amplifiers to the brand's Master Collection.
www.stereonet.com
Karan Acoustics KAS 600 Stereo Amplifier and KAL Reference MK3 Preamplifier - Positive Feedback
Karan Acoustics KAS 600 Stereo Amplifier and KAL Reference MK3 Preamplifier
positive-feedback.com
- Originalemballasje
- Ja
- Orig. kvittering
- Ja
- Forsendelse
- Kan sendes
