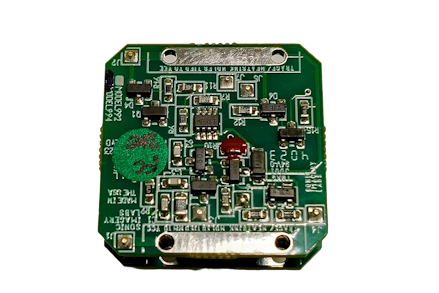

Butikk Sonic Imagery Lab Model 994FC-Enh-Ticha Dual Op-Amp

Sonic Imagery Lab Model 994FC-Enh-Ticha er en high-end diskret operasjonsforsterker designet for profesjonelle lydapplikasjoner. Op-ampen tilbyr ekstremt lavt støygulv, lav forvrengning og svært lineær ytelse og transparent klang. 992Enh-Ticha er designet rundt bipolare transistorer som gjør dem effektive strømdrivere.
Denne Op-ampen er oppgradert med Vishay Foil and Tantalum Nitrid motstandere i forsterkerkretsen for å gi den beste lyden!

Mål: 25.4mm x 25.4mm DIP8 sokkel



Features:

• Ultra Low Total Harmonic Distortion, 0.0003 THD+N @ 1kHz
• Ultra Low Noise 0.89nV/rtHz typical
• High Current Output Drive (150mA into 600 ohms @ ±24V supply)
• +26dBu Output Levels (into 600 ohms @ ±24V supply)
• Standard 8 pin DIP Footprint
• Operates over ±7.5V to ±24V supply rails
• Operating Current 17ma (each amp)
• Voltage Gain Open Loop 118dB
• Lower output offset voltage than existing counterparts
• Lower input leakage current than existing counterparts
• Particular emphasis on audio performance
• Designed, assembled and produced in the USA
• 3 Year Warranty

Applications:

• Low Impedance Line Amplifiers and Drivers
• Active Filters and Equalizers
• Summing/Mixer Amplifiers
• High Performance Microphone Preamplifiers
• High Performance A/D and D/A front end Preamplifier
• High Performance D/A I-V convertors
• High Current Buffer Amplifier
