It won?t be an easy chance to have as rich and beautiful time as listening to music with a good quality audio system, in addition, if sound of the system is good enough, it will be the most pleasant time to enjoy.
In order to enjoy the moment, many audiophiles are investing a lot of time and money to their own system. And they will understand that it can be a long journey that is only possible with the passion for audio.
However, we wonder how many audiophiles would have been satisfied with sound in their system. Especially with a network audio system, you will know from your own experience that it is not very easy to overcome and resolve all variation from the network circumstances. It also occurs with an ultra high-end system, mainly due to the lack of technology development so far, particularly, the physical network transmission technology is the key point to be considered in this subject.
Not all of the physical network connections use the special techniques developed for audio transmission, even though there are a variety of high-end digital audio devices, and eventually it brought a lack of musical fidelity which should not be performed as high-end audio devices.
So the sNH-10G is now available, it is the network switch developed to overcome such low performance in a network environment, and it is finally able to give you a solution in your network audio system fundamentally.
The input and output terminals consist of eight LAN ports and two SFP ports. And there is also an option to install the sCLK-EX and the 10 MHz master clock input connector to further maximize sound quality. With these options and high-performance network cables, such as the dCBL-CAT7, your network audio system will be able to perform with more realistic textures, wider sound stage and explosive dynamics without losing the detail of the entire range.

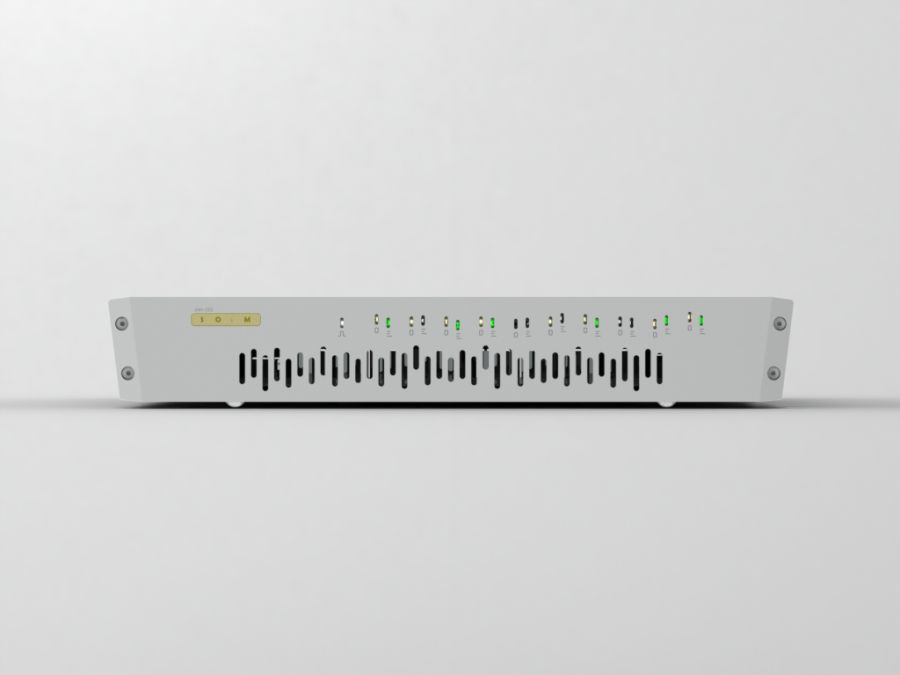

In addition, the beautiful carving design representing the melody of music with a luxurious aluminum body simply proves the differentiations from some conventional network products in all aspects.
No matter what high end audio system you currently have, experience the sNH-10G to prove what the ultimate sound should be in your network system.
Key Feature
Designed for high end network audio
Specially designed Ethernet noise filter
Support 10, 100, 1G ethernet
8 x RJ-45 ports
2 x SFP ports
LED indicator on/off function
sCLK-EX High End clock module (OPTIONAL)
10MHz master clock input (OPTIONAL)
Wide range of power input(6.5v ~ 12v)
Specification
User interface
Power indicator LED x 1
Link indicator Front LED x 10, Rear LED x 8
Active indicator Front dual Color LED x10, Rear LED x 8
Power switch : Power off, Power on with LED, Power on without LED
Network
Supported Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX 100Mbps over fiber optic
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-T 1 Gbps over fiber optic
IEEE 802.3x flow control and backpressure
Full-duplex and half-duplex operation
Supports 9216 byte jumbo packet length
Connector
RJ-45 ports x 8
SFP ports x 2
Optional audio grade clock
sCLK-EX with 10MHz Master clock input
DC power input
Input voltage : 9Vdc(Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc when installing sCLK-EX)
Voltage tolerance: ±10%
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Operating environment
Operating temperature : +10 ~ +30?
Storage temperature : 0 ~ +40?
Operating & storage humidity : 10% ~ 90%
Dimension
296 x 211 x 50(mm)
Weight
2 Kg >
