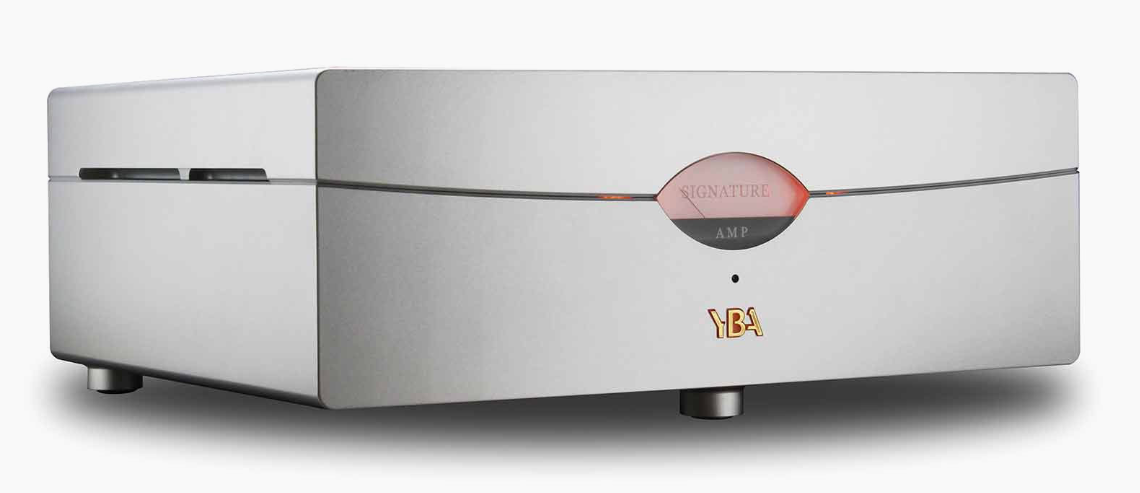

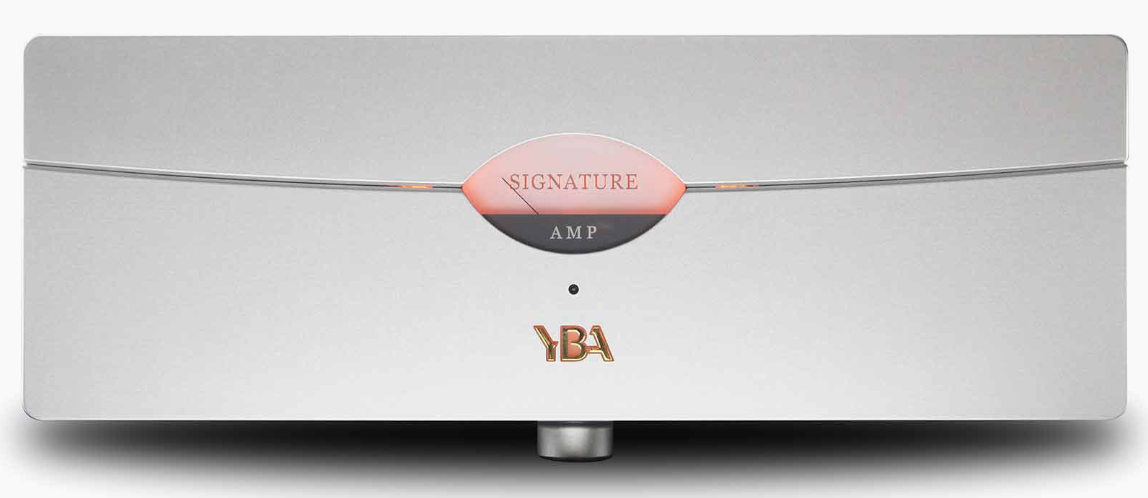

The circuit used in this YBA amplifier is completely symmetrical; this cancels any defects introduced via the power source, minimizes parasitic ground currents and avoids any need for passive components in the signal path.
The number of components has been minimized; the signal traverses only transistors. No passive components alter the original purity of the musical signal. The input stage is of the complementary double differential type; it is followed by a pre-driver stage, which allows the adaptation of the impedance and initial amplification of voltage. The pre- driver stage is followed by a third stage, which completes the amplification of voltage; it distributes the current and voltage necessary to the output stage, which is directly coupled to the speakers.
The geometry of the circuit has been optimized to reduce the distances between components and the connecting wires to the absolute minimum: only a few centimetres at the input and output of the
amplifier. The transformers are suspended in order to reduce the transmission of their vibrations to the rest of the amplifier.
| Product type | Stereo power amplifier |
|---|---|
| Audio Outputs | 2 Pairs Speaker Outputs |
| Power Outputs | Stereo 200W @ 8 Ohms per channel Stereo 400W @ 4 Ohms per channel Mono 600W @ 8 Ohms bridged |
| SNR | >95dB |
| Frequency Response | 20Hz – 20kHz (-0.5dB) |
| THD+N (20Hz - 20kHz) | <0.1% |
| Inputs | 1 RCA, 1 Balanced Input (Stereo) 1 Balanced Input (Mono) |
| Power Supply | Linear power supply with high performance UICore transformer 1000VA |
| Color / Finish | Natural aluminium |
| Dimensions (w x d x h) | 430 x 390 x 170 mm |
| Weight | 42.5 kg |
Sound of Heaven tilbyr:
+ Innbytte ( god pris for ditt utstyr )
+ Nedbetalingsplan ( rente og gebyrfritt)
+ Gratis frakt i hele Norge
JWK Audio/Sound of heaven
Tlf:+47 464 29 861
E-mail: kontakt@soundofheaven.as
Hjemmeside: www.soundofheaven.as
- Originalemballasje
- Ja
- Orig. kvittering
- Ja
- Forsendelse
- Kan sendes
