vidarje
Hi-Fi freak

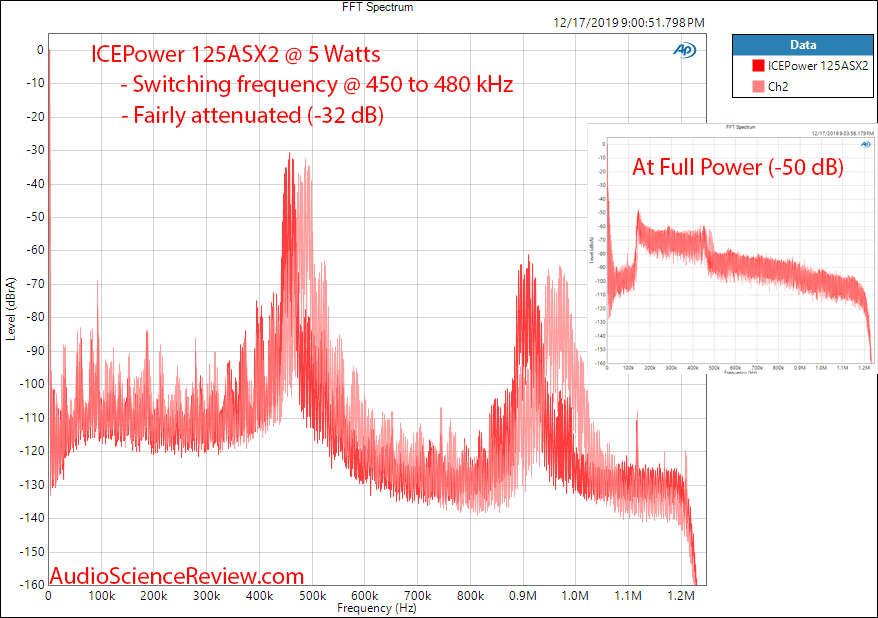

Koblet opp en ICEpower125ASX2 til et oscilloskop for å måle om forsterkningen var ca 30dB som det står i manualen. Jeg koblet opp laptopen med REW og målte først inngangssignalet så skulle jeg måle på utgangen med en høyttaler tilkoblet, men da kom det en overraskelse. Det var en pen og ren sinus på 500kHz med en amplitude på 4V, dette kan vel ikke være riktig?
Jeg koblet bort alt som var koblet til forsterkeren, men sinusen var der fremdeles. Dette står det i manualen:
Amplifier Local Protection
The ICEpower125ASX2 has a local protection circuit for each of the two audio channels. This local protection handles HF protection and saturation detection. If one of these protections features is ac-tivated on one channel, it will only influence the channel where the error occurred.
The HF protection circuit is implemented to protect the Zobel network against ultrasonic signals (greater than 20kHz). This protection circuit has a built-in time constant, so it is possible to deliver a high frequency, high amplitude signal for a short time.
Noen som har forslag til hva som kan være galt?
