THE USE OF MIRROR IMAGE SYMMETRY IN COIL WINDING, APPLICATIONS AND ADVANTAGES IN MAGNETIC FIELD GENERATION
Etter eksperimentering med sine egne høyttalere fant Earl Koenig at spolen i en magnetmotor, transformator etc kan forbedres. Dette resulterte i patent # 4,806,834
Kjernen i patentet er en oppdagelse av påstått positive effekter ved å utforme vindingene symmetrisk speilet om midten som vist her:
I en artikkel om patentet forfattet av Toby Grotz beskrives patentet slik:
ABSTRACT
An improved method of winding inductors, transformers and motors has been discovered. This invention greatly enhances the ability to generate magnetic fields with a given amount of wire. This invention is as fundamental to the use of magnetic fields as was Nikola Tesla's use of rotating magnetic fields for the generation of alternating current.
The mirror image symmetry of winding coils is achieved by winding two strands of wire onto a coil form at the same time. This method results in two coils each occupying half of the form. The set of coils is then connected in parallel. When the coils are connected as described above, the net result is the ability to generate many times the magnetic field within and around the Solenoid.
This invention has a wide range of applications in transformer, motor, generator, and loudspeaker design. This paper will detail the results of tests performed with solenoids. Magnetic field strength has been measured and will be shown to be substantially increased using mirror image symmetry.
Artikkelen finnes her: http://www.padrak.com/ine/KOENIG.html
Pdf av patentet her: https://patentimages.storage.googleapis.com/4e/5d/5a/e2dac32b500ec1/US4806834.pdf

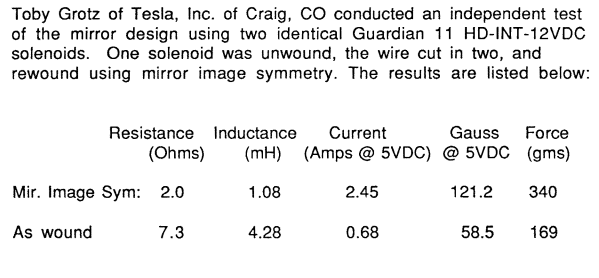

Toby Gotz testet ut patentet på en solenoide med følgende resultat:
Artikkelen til Grotz slaktes her av Joseph Stark: http://www.padrak.com/ine/KOENIG2.html
Han skriver blant annet som kommentar til solenoide tallene over:
"Note that identical results could have been obtained simply by using a wire
of twice the cross section and half the length, ie., half the no. of turns.
This coil would also have a resistance of 1/4, an inductance of 1/4 (because
inductance is proportional to N^2), a current from the same voltage source
of 4 times, and a field strength of 2 times. Note also that this new coil
takes 4 times as much power (V *I). This is less, not more, "efficient" at
producing twice the field. This coil would also have occupied the same
volume. Thus absolutely no new novel effect is apparent, and the claims are
spurious."
Dette er langt unna mitt fagfelt, så jeg skal ikke konkludere.
Det hadde uansett vært morsomt om noen som sysler med design av høyttalerelementer ville bygge, teste og måle. Eller er det bortkastet energi?
