Butikk Westminster Lab QUEST

Et moderne utseende, fullpakket med kvalitet!
For Bestilling eller spørsmål ta kontakt her: Endpoint Audio
Eller ring meg på 47832922 - Jeg har demomodell tilgjengelig.
Mvh Tom Egil

Denne kommer med noen ekstravalg som velges ved bestilling.
Extended Carbon Pack
Extra carbon fibre shielding for the input, output, volume, and power supply section of the Quest. Enhancing the background darkness, micro-details,
texture and emotion of the music playback. 29.880,-

Extended Connection Pack
This pack add two additional remote trigger output for ease of operation. Compatible with the Rei / UNUM and most amplifier on the market.
10.680,-

Gloss Carbon Finish
Gloss Carbon Replaces the top cover with gloss finishes carbon fibre.
11.880,-

Ektravalg som kan bestilles også etter levering.
RCA input RCA input expansion card
21.500,-
Phono Input ( RCA ) MC Phono ( RCA ) input expansion card / Phono Input ( XLR ) MC Phono ( XLR ) input expansion card / DS Audio Equaliser (RCA) input
69.500,-

QUEST – Reinventing The Wheel
The ultimate aim of the Quest is to create the perfect preamplifier to accompany the Rei and the cables lineup. With the Quest, it completes the loom between your source and pair of speakers. Setting out to push the boundary, it redefines how a preamplifier can contribute to the system and the ability to extract every bit of potential from both the recorded music and the music reproduction system.

During the inception of the project, we endlessly question the role of the preamplifier in an audio system, and constantly challenge whether a pre-amplifier is absolutely necessary in a system and what qualities the added stage can bring or may bring to the outcome. We begin with a fresh start to investigate the relationship between the source and the amplifier. Every section of the preamplifier has been looked at thoroughly to see how we can improve every single part and also what kind of synergy we can extract from them.

Full balanced Dual-Mono pre-amplifier from WestminsterLab.

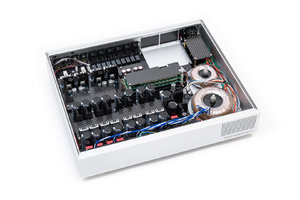

Complete full balanced circuitry with hand picked through whole components matched to 0.5%. Hand soldered and hand crafted in

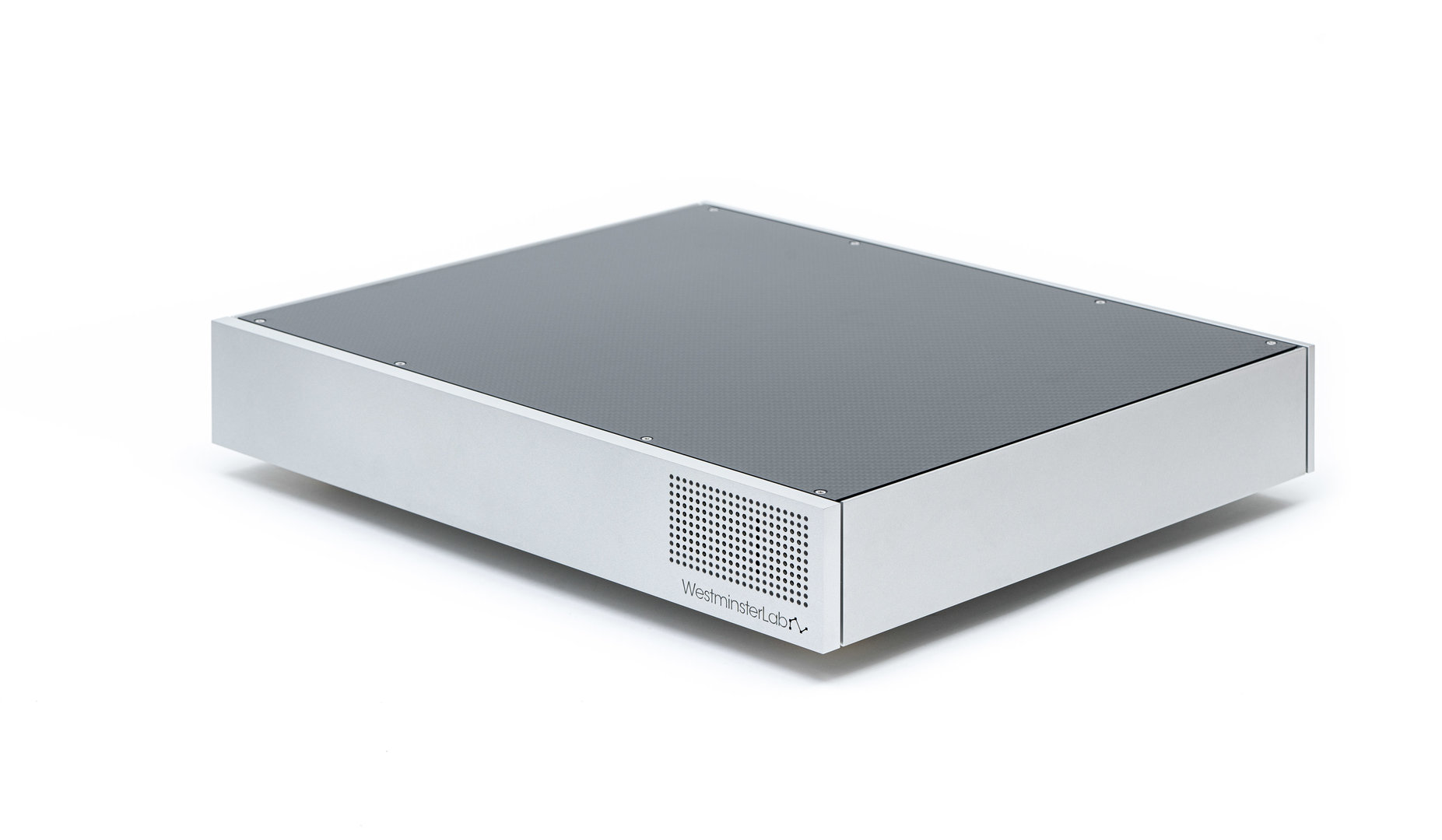

Hong Kong. Sandblasted aluminium finish with carbon top cover as standard.


SPECIFICATION
Quest
Distortion
<0.0001% @ 1kHz

Signal-to-Noise Ratio
>120dB, unweighted

Input
3 sets of balanced XLR input
2 optional modules

Input Impedance
51 kΩ

Input Voltage
6Vrms

Frequency Response
2Hz to 100kHz, 0.1dB

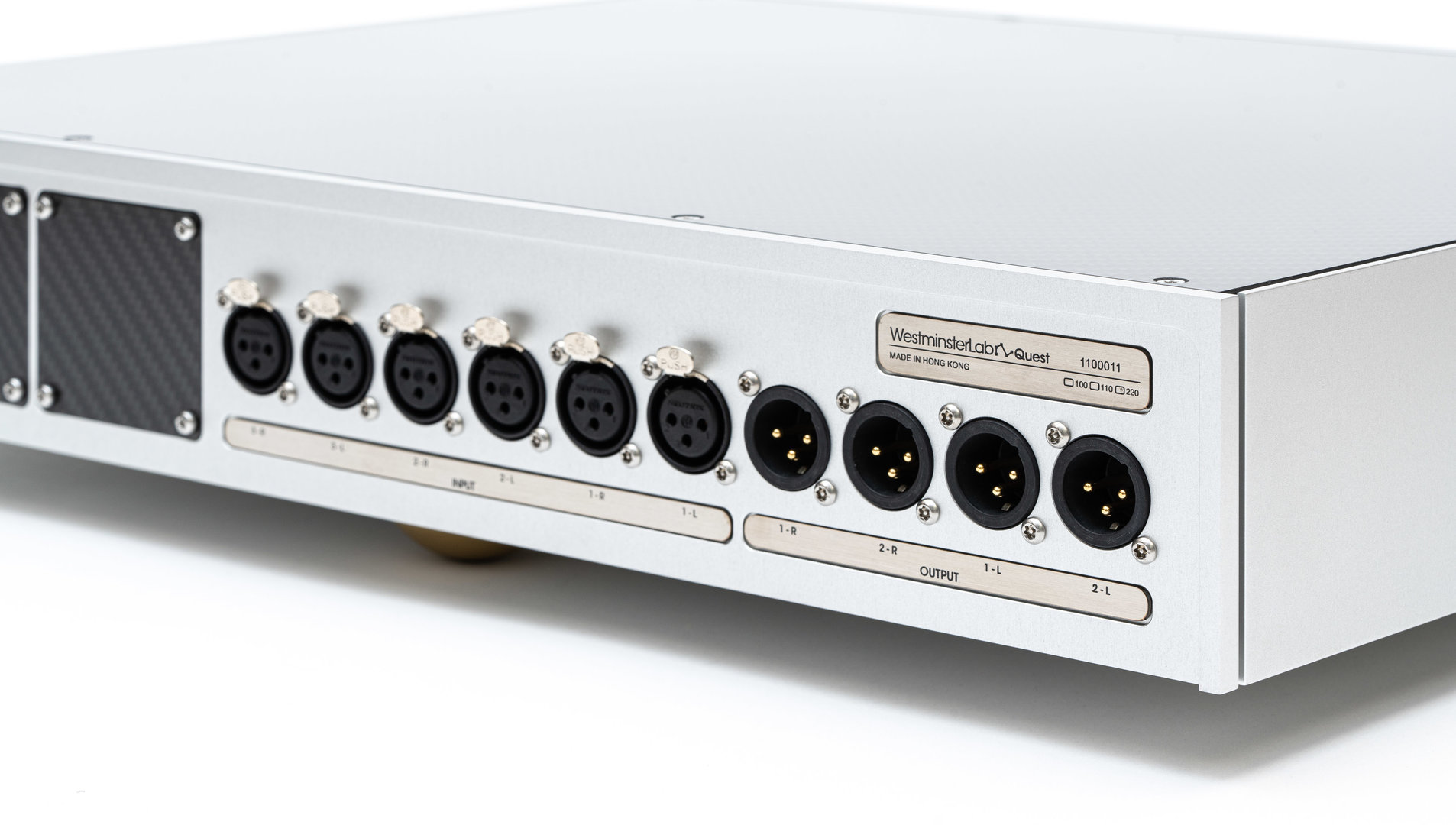

Outputs
2 sets of balanced XLR outputs

Output Voltage
12Vrms

Channel Separation
>120dB

Gain
6.5dB

Volume Control Range
0 to -63dB / Mute

Dimensions
W470 x H110 x D392 mm

Weight
13.2KG


OPTIONAL MODULE SPECIFICATION
DS Audio Equaliser

Input
1 set of unbalanced RCA input

Gain
27dB

Compatibility
All DS Audio cartridges. DS Audio certified equaliser.

Outputs
19pin proprietary socket
MC/MM Phono

Input
1 set of balanced XLR input or
1 set of unbalanced RCA input

Input Impedance
60Ohm to 47kOhm ( 18 steps )

Loading Capacitance
22pF to 322pF ( 5 steps )

Gain
40dB to 70db ( 4 steps )

Compatibility
Variety of modern and vintage MC/MM/MI cartridges.

Outputs
19pin proprietary socket
RCA Input

Input
1 set of unbalanced RCA input

Input Impedance
51 kΩ

Input Voltage
6Vrms

Frequency Response
2Hz to 100kHz, 0.1dB

Outputs
19pin proprietary socket

Gain
6dB
