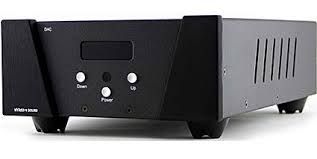

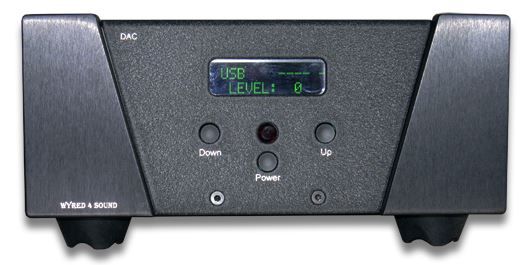

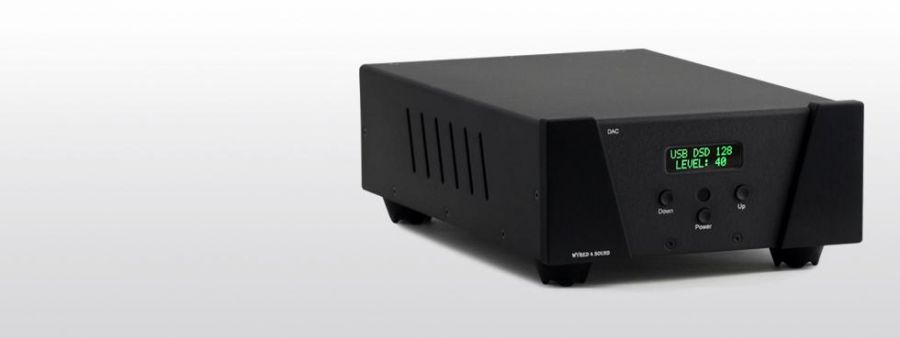

Wyred4Sound DAC-2 DSDse med Femto Clock selges grunnet oppgradering.
Snart fire år gammel, men virker og ser ut som ny. Kjøpt ny i Norge fra Stilimento Audio på Lillestrøm som en vanlig DAC-2. Oppgradert av meg på fabrikken i California sommeren 2013 til SE-utgaven med DSD, Femto klokke og nytt display.
Denne DAC´en har mange digitale innganger, inklusive analog "Home Theater Passthrough". Fungerer også utmerket som forforsterker.
Om den aller beste inngangen - I2S over HDMI - er interessant, så har jeg også tilgjengelig en PS Audio PerfectWave I2S-12 Silver HDMI kabel på 1.5 m.
Et Google-søk vil gi mange anmeldelser og omtaler av denne DAC´en.
Selges for 12.000. Pris ferdig fortollet fra USA er 27.663 + frakt og gebyr ved fortolling.
Typical Distortion
THD+N (20-20kHz A-weighted) <0.006% THD+N
Frequency Response(20-20kHz)+/-0.075db
S/N Ratio > 115 db
Crosstalk > 98 db
Noise (A-weighted) < 7uV
Noise < 10uV
Balanced Output Level 5.2V (14.2 db)
Unbalanced Output Level 2.6V (8.2 db)
Output Impedance 100?
Channel Tracking < +/-0.50 db
Specifications:
Type: Solid-state 384kHz/32-bit / DSD DAC
Chipset: ESS Reference audio - ESS 9018 - 32 bit DAC

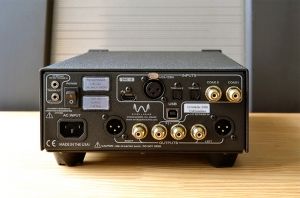

Inputs: Two S/PDIF coax, two optical TosLink, AES/EBU and balanced I2S input via HDMI cable
W4S proprietary discrete output stages

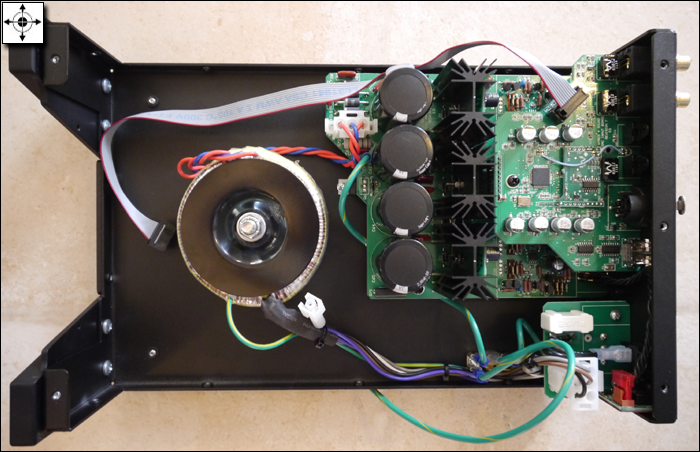

Internal Parts: Custom Vishay Z-Foil resistors, ultra-low noise discrete regulators, ultra-fast recovery Schottkey diodes, Premium grade inductors, and rhodium plated Furutech fuse.
ESS Time Domain Jitter Eliminator. Asynchronous USB input supports 32-bit 384kHz and DSD64 + DSD128. Fully balanced design with balanced and unbalanced outputs. Upgradeable Digital, Output, and USB boards (designed for future improvements). Power Supply: Oversized toroidal transformer for solid and noise-free power and 88,000uF of filtering with W4S low ESR «super-cap"

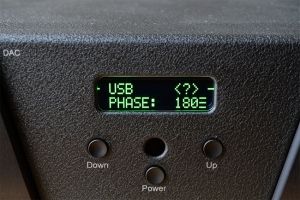

Green OLED display for input, sample rate, volume control, and configuration viewing

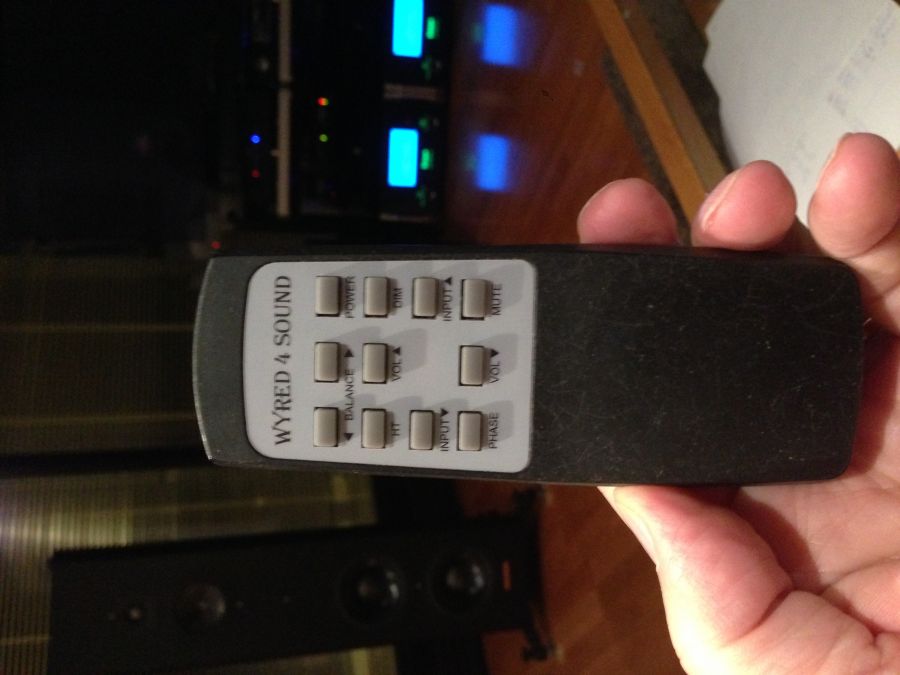

Remote control with features such as balance control and phase inversion
Defeatable 32 bit volume control
HT Bypass inputs (selectable via DC trigger)
Dimensions: 8.5» x 4.125" x 13.5" (WxHxD)
Weight: 14 lbs. = 6.35 kg.
Warranty: Five years
Price: $2499
Beskrivelse fra Wyred 4 Sound:
Enhancing the already stellar performance of our DAC-2 series, the DAC-2 DSDse includes an array of highly upgraded components: Vishay Z-Foil resistors, ultra-low noise discrete regulators, ultra-fast recovery Scottkey diodes, premium grade inductors, green OLED display and a Rhodium-plated Furutech fuse. The culmination of these enhancements is refined audio performance down to the minutest nuances. Delivering the highest quality audio of our digital-to-analog convertors, the DSDse is like the DAC-2 on steroids.
We increased the DAC-2?s USB PCM resolution to 32-bit 384kHz and added galvanic isolation to eliminate computer noise from the audio signal completely. Integer mode compatibility allows direct communication between the signal source for bit-perfect playback in Mac systems. Additionally the new DSD interface is driverless for Mac and Linux platforms, ensuring seamless installation. A simple driver install is needed for USB streaming from PC systems. The DAC-2 DSD means you can be confident that the ultimate USB technology is built into your DAC!
The DAC-2 also features an all-new proprietary 24-bit asynchronous USB implementation that handles sample rates up to 192Hz using Wyred 4 Sound drivers for Mac or Windows operating systems to put the DAC2 on a level playing field with devices like the Perfect Wave and Ayre converters.
The DAC2 is also more versatile, offering HT bypass and a defeatable onboard 32-bit digital attenuator, enabling power amplifiers to be driven directly from the converter (via remote control) for maximum transparency: no preamp or extra set of interconnects required.
