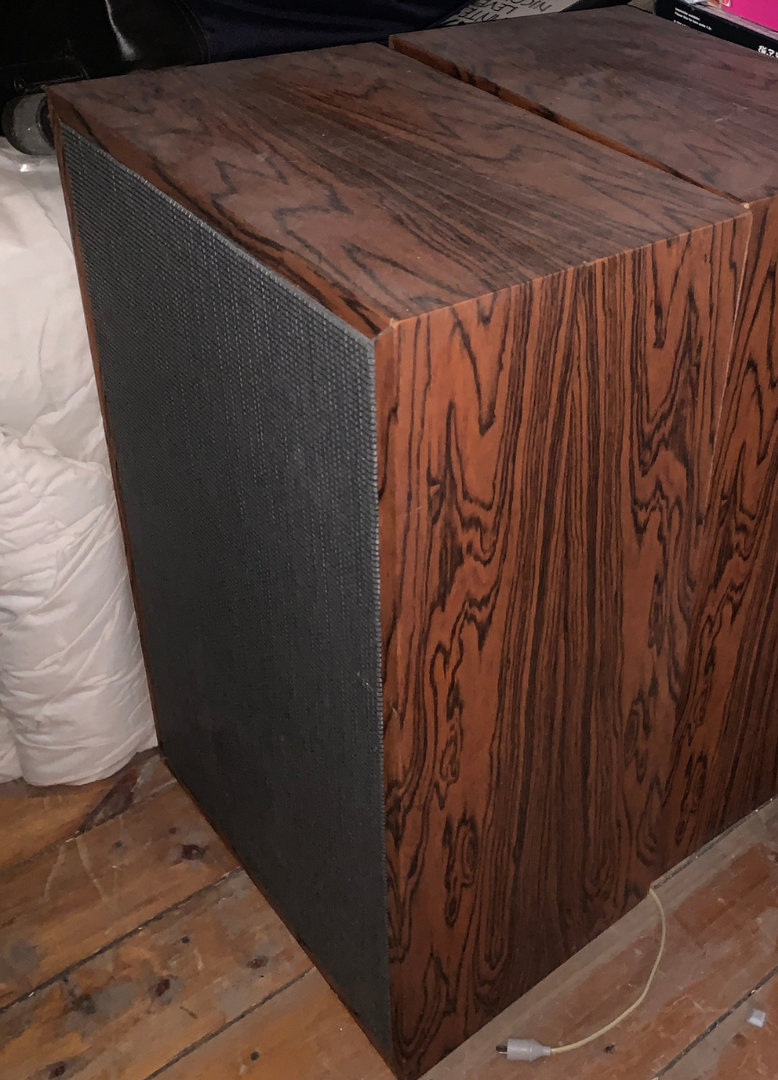

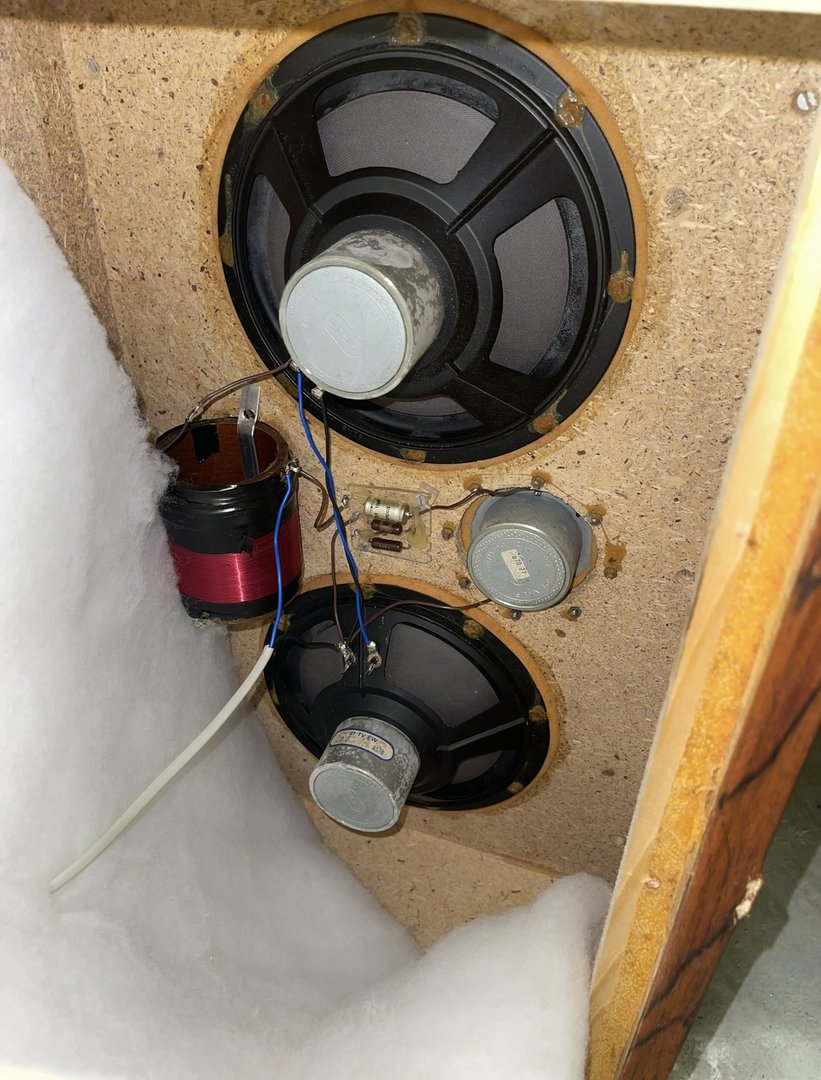

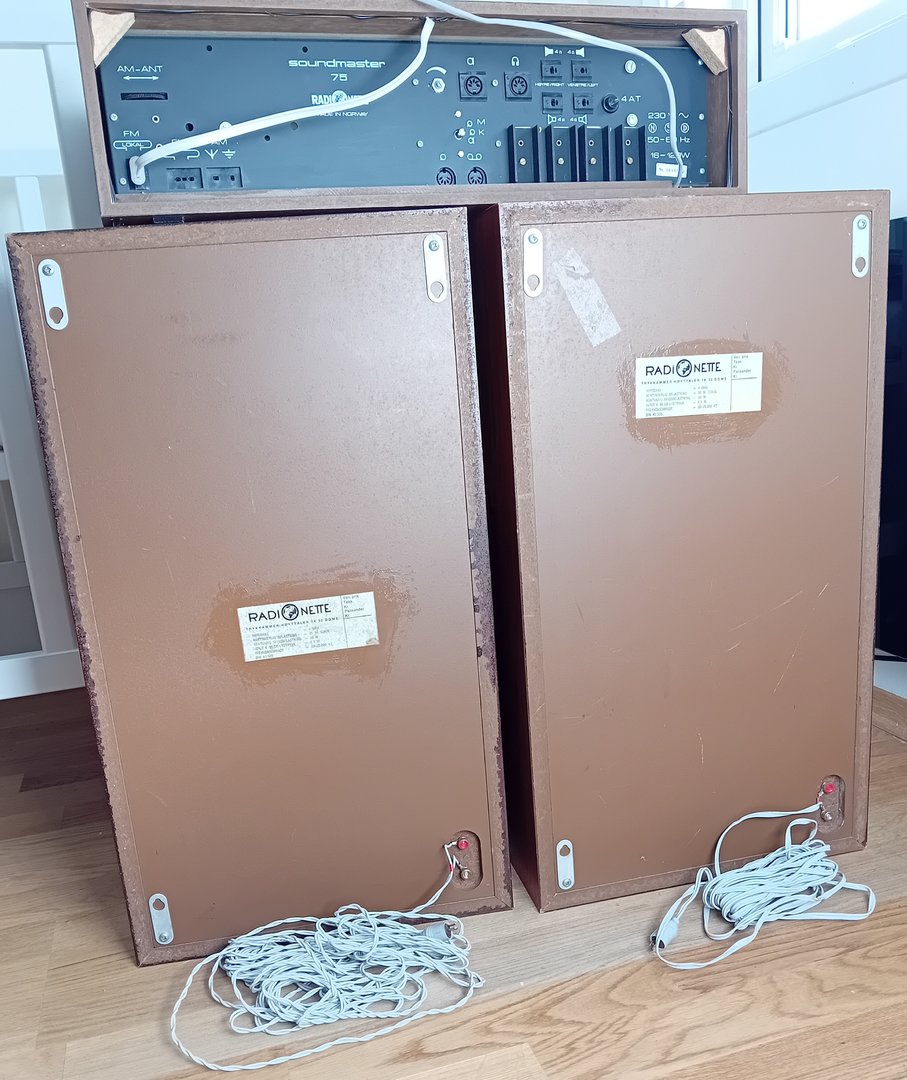

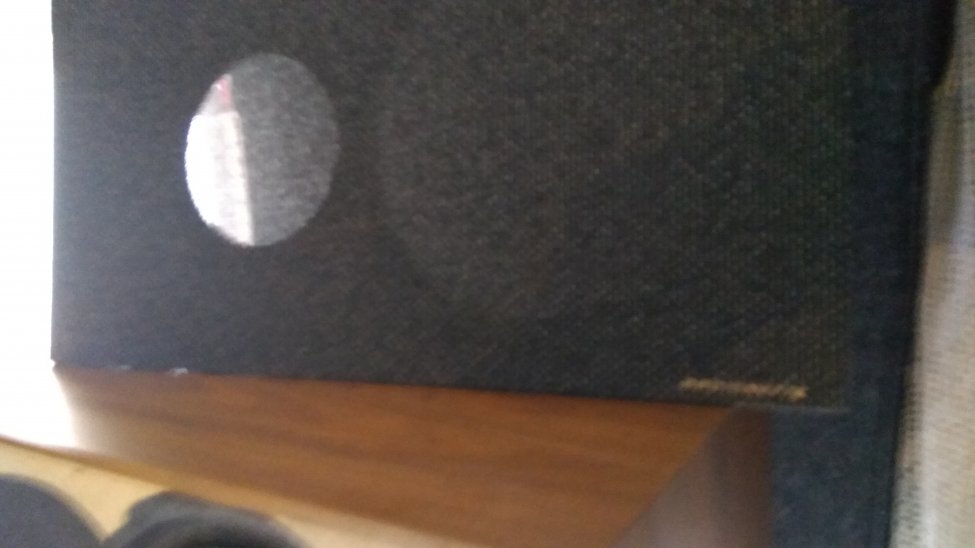

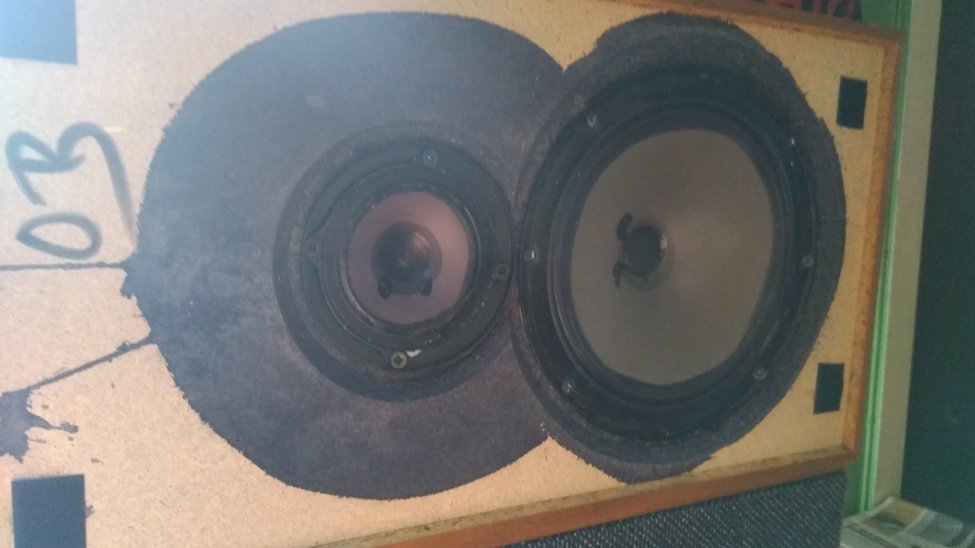

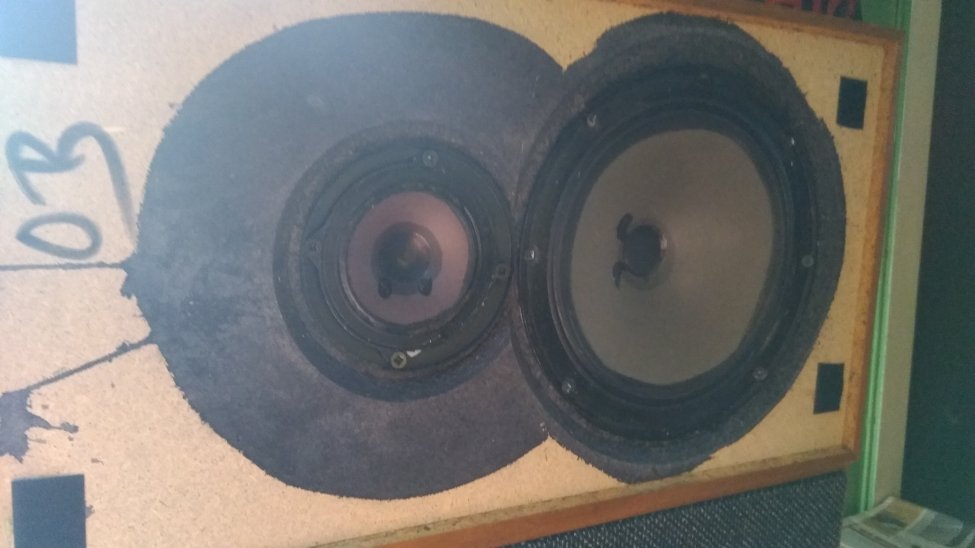

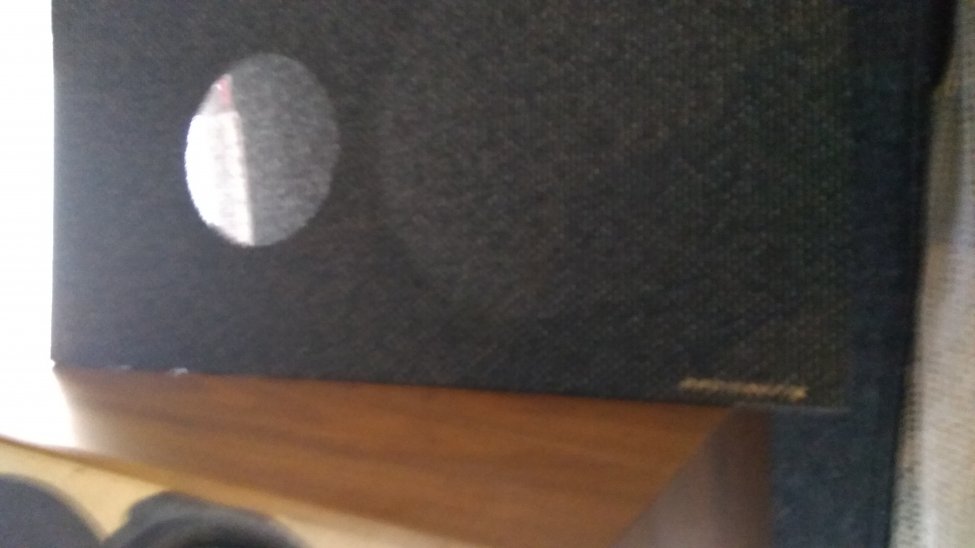

Hei, ikke mer mystisk enn at Elkjøp, etter Radionette/Tandberg konkursen i 1978, i en årrekke solgte noen høyttalerserier med egendefinert styling og Radionette logo. Noen av disse var Olle Mirch modeller, med Phillips elementer. Og Radionette logo. Jeg har et par slike et sett på ca 20 liter med 8 tommer Phillips i bunn og en Phillips dome i toppen, den velkjente med transparent dome. Spiller bra med SM230 og den litt sterkere SM250 samt matcher disse utseendemessig fordi treverket er foliert med samme type tapet. De minste Elkjøp-Radionettene jeg har er noen små med 17 toms Seas i bunn pluss en liten asiatisk tweeter. De er ikke Olle Mirch men er laget på en møbelfabrikk et sted på Møre. Senere Radionette høyttalere fra Elkjøp var vel koreanske om jeg ikke tar feil.Fant Mirsch OM 322 på nettet. Det må jo være de. Må være noen som har pynta de med Radionette merket en eller annen gang. Mystiske greier

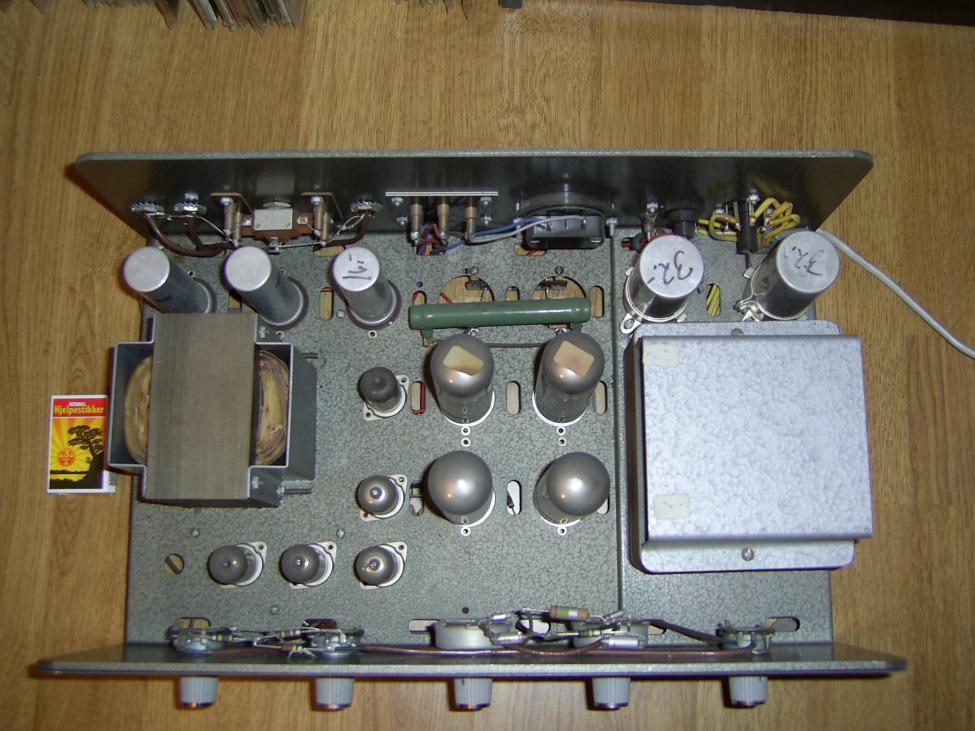

Hi @jarlerik, i have a K3 that im fixing for a friend of mine. Do you happen to have a schematic for it? First post!K3 innvendig

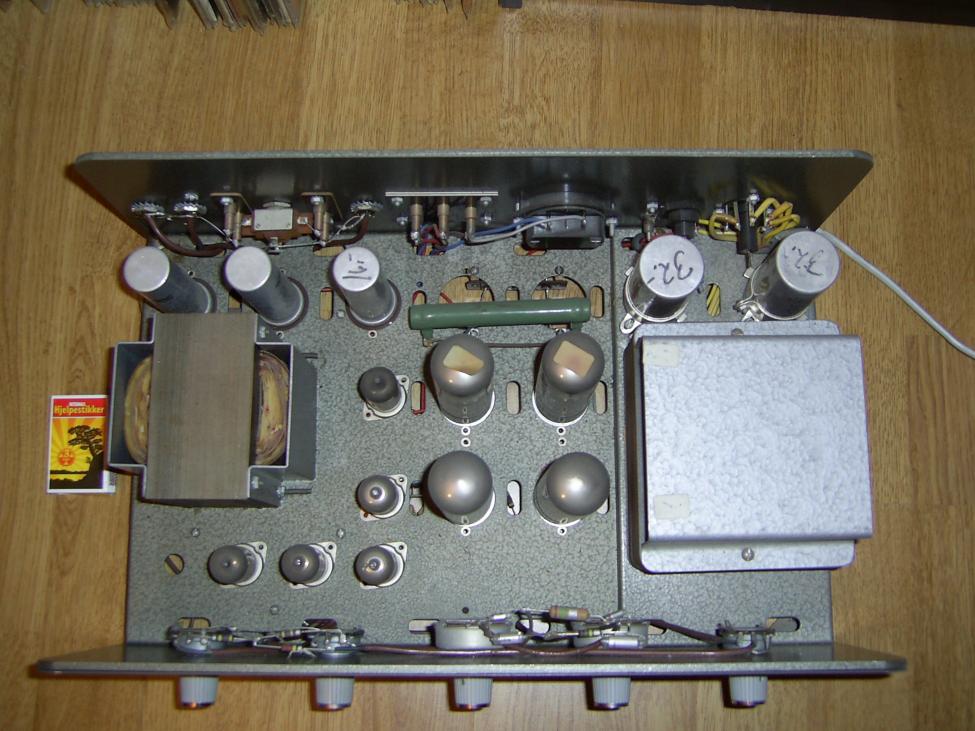

Vis vedlegget 295874 Ha
Sorry, try this siteHi @jarlerik, i have a K3 that im fixing for a friend of mine. Do you happen to have a schematic for it? First post!
marco

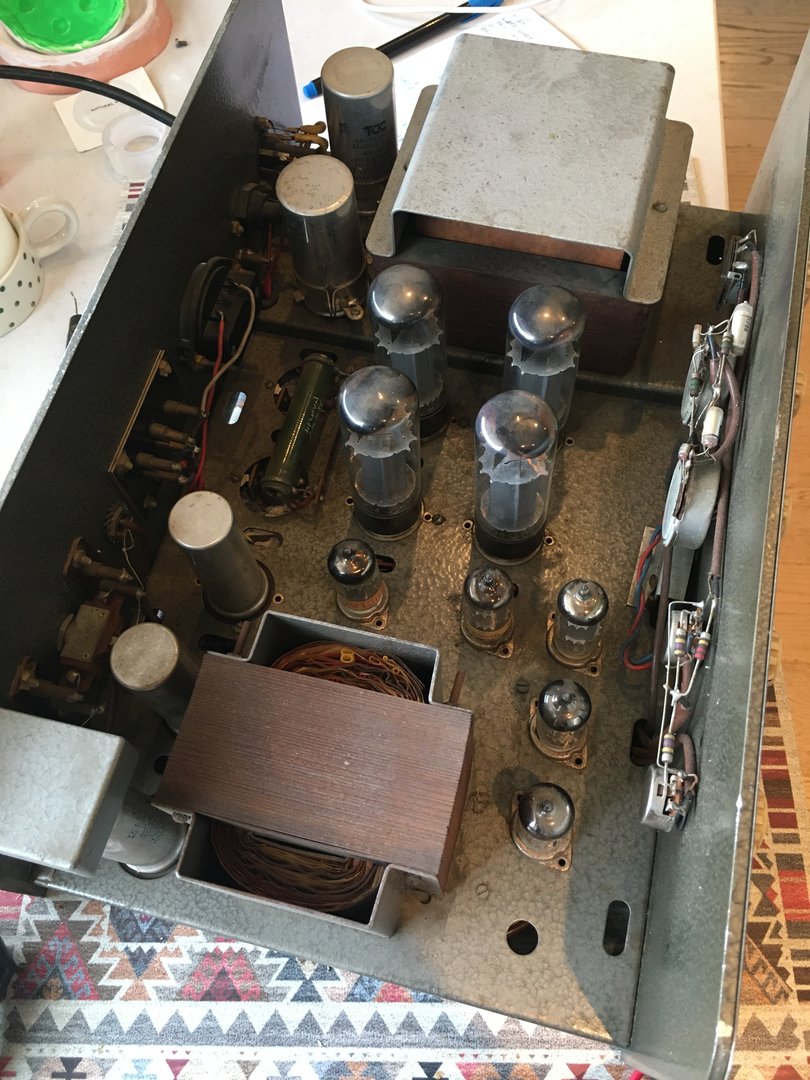

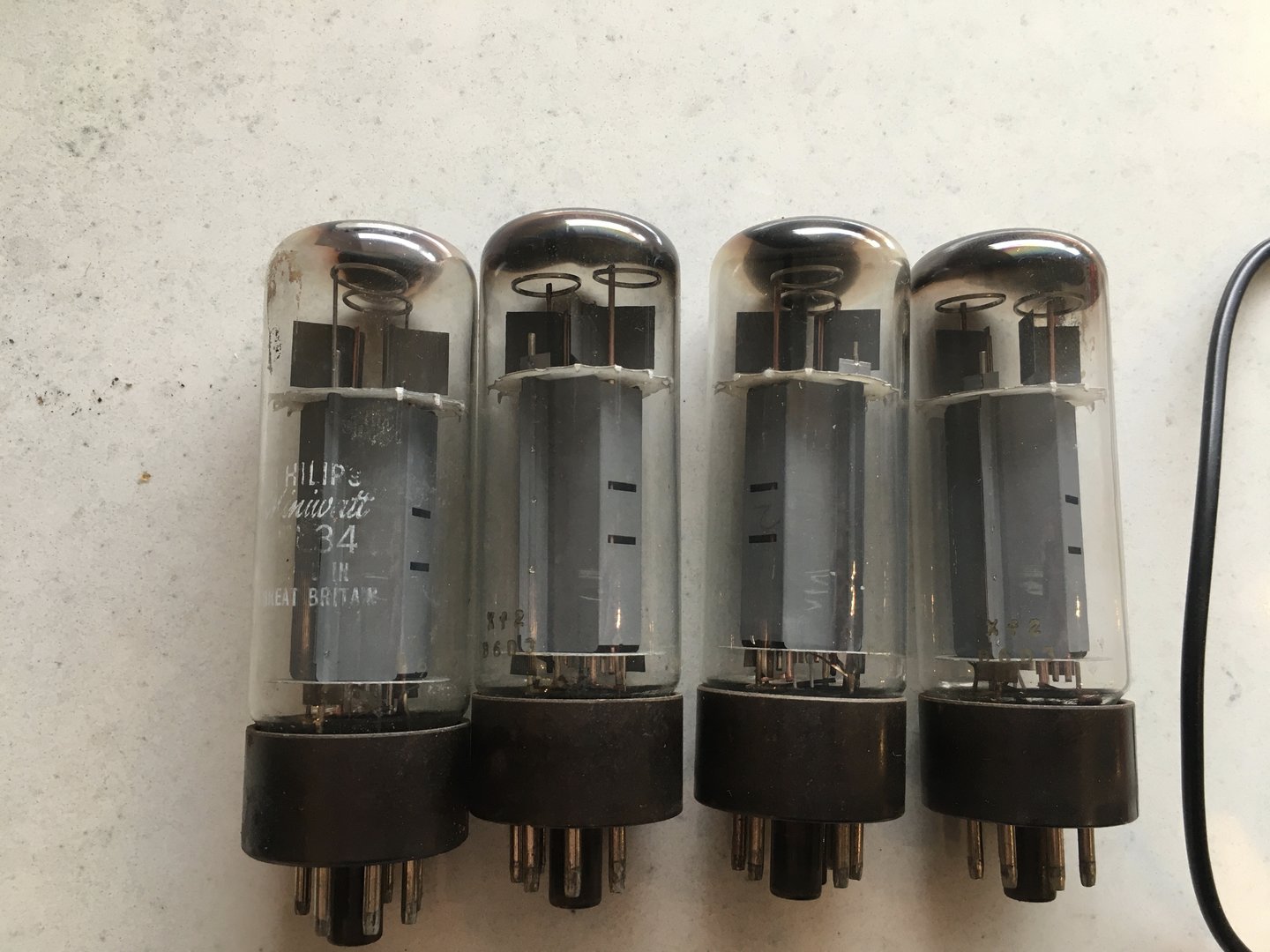

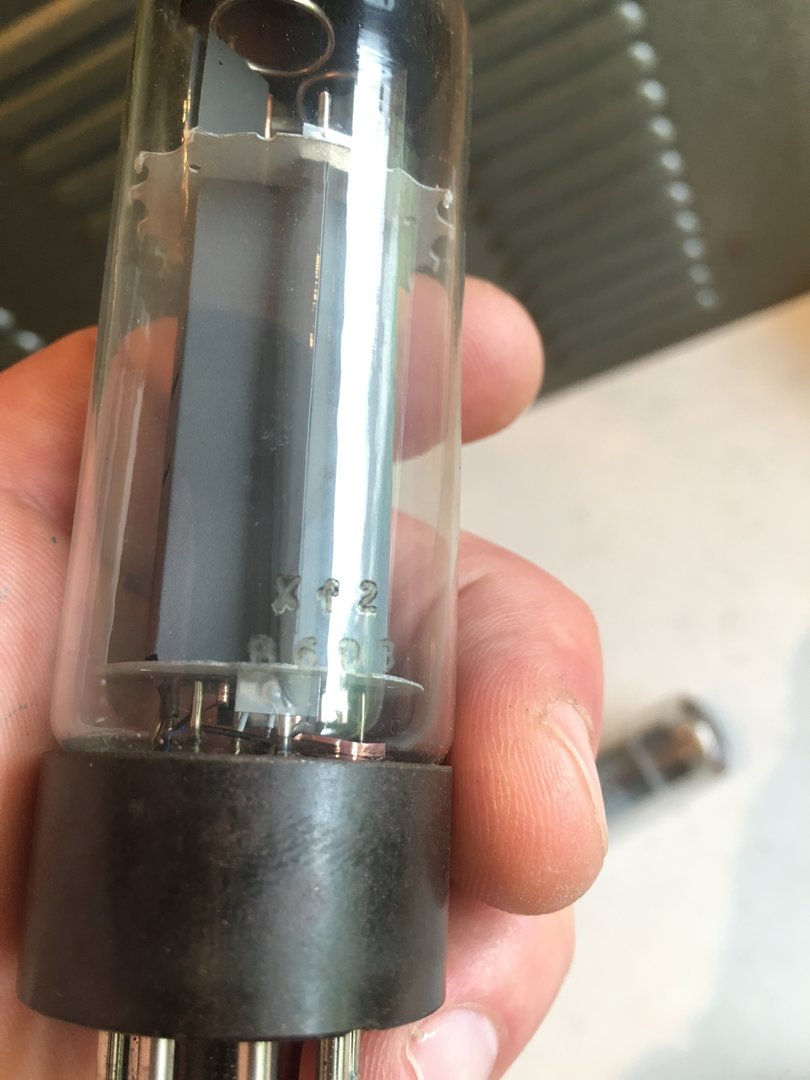

I have replaced 95% of components and the PA works and its very quiet, but two EL34 are red plating. Just ordered two 10W 200Ohm cathode resistors to see if i can bring the current down. Thank you for the link! By the way, yours is running EL34 too?
The output transformer?I put mine away many years ago because the output broke down. I think it was EL34.
jarlerik
Thats an easy fix! If you can solder i could help you fix it if you want..I dont think it was tke trafo. I am not shure but i think it was a broken resistor.
I'll get back to you when the holiday is overThats an easy fix! If you can solder i could help you fix it if you want..
Do that! Happy to helpI'll get back to you when the holiday is over
Have you measured the grid voltages on those tubes?but two EL34 are red plating

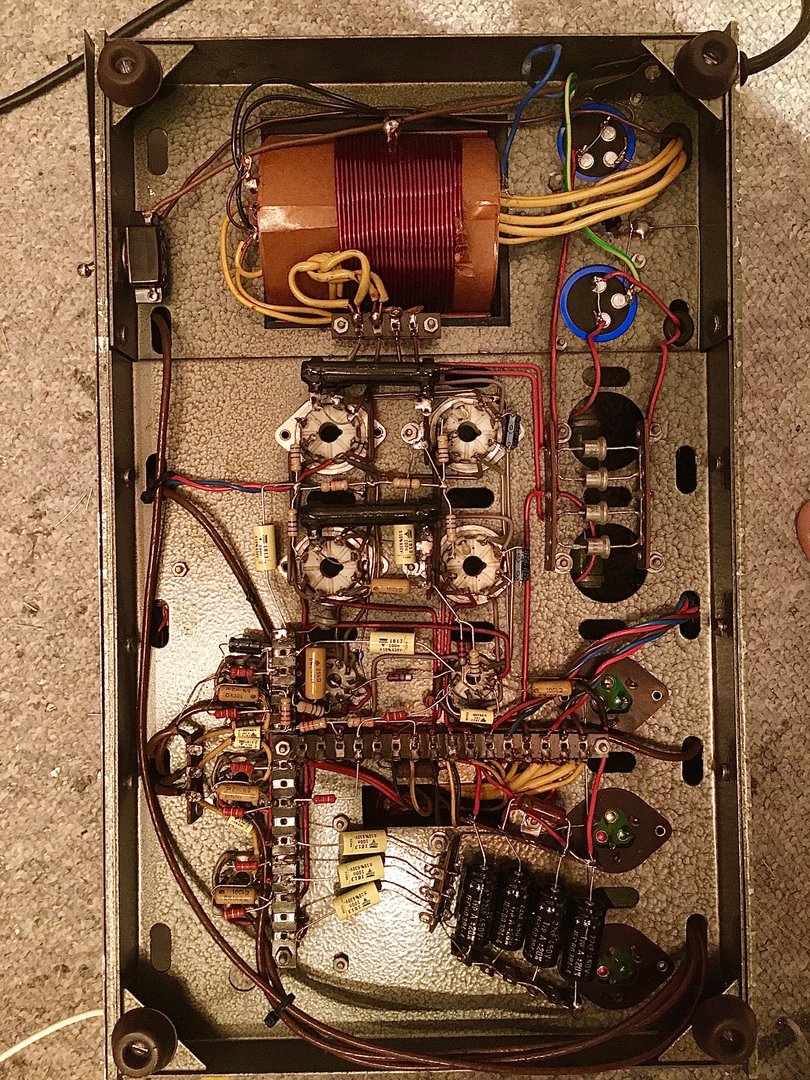

That picture was taken before i replaced 95% of the components. The problem turned out to be the cathode resistors, as their value was too low. At 160ohm i had 25V drop, for 78mA current per tube, with 428V on the plates, for 33W dissipation!!!Have you measured the grid voltages on those tubes?

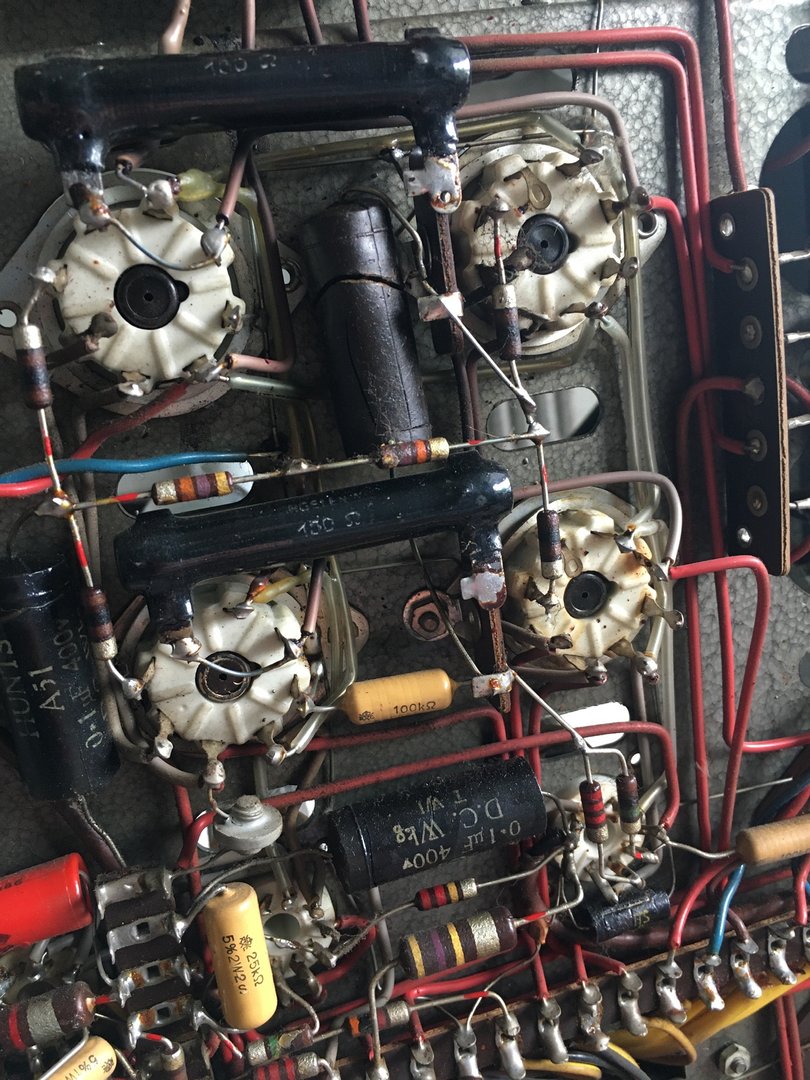

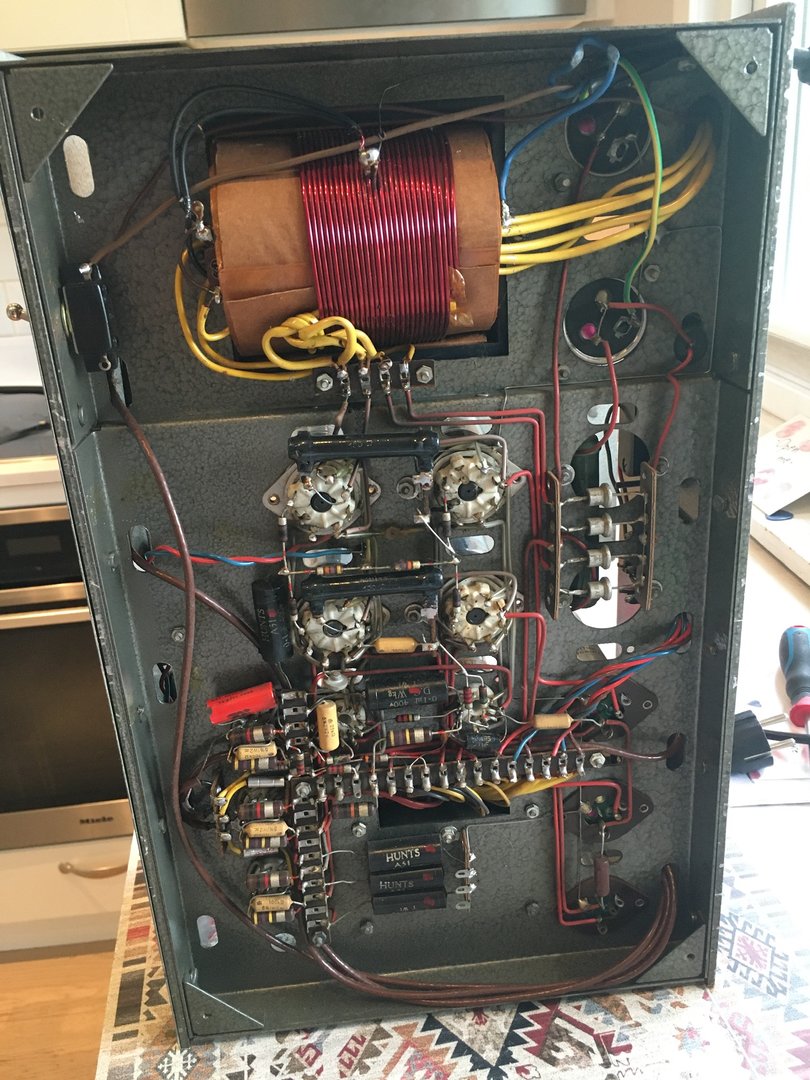

From the pictures it looks like you stil got the original Hunts paper capacitors connected.
If they are, you should replace them with new film caps.
Those could well be the cause.
Those Hunts caps are notorious for drifting, but amazingly they tested qt less than 5% drift. I bin them anyway....Yeah, it sounded strange that you should have changed 95% of the components,
and still have those old Hunts caps in there
Glad you got it working, it looks great now.
Excellent work.

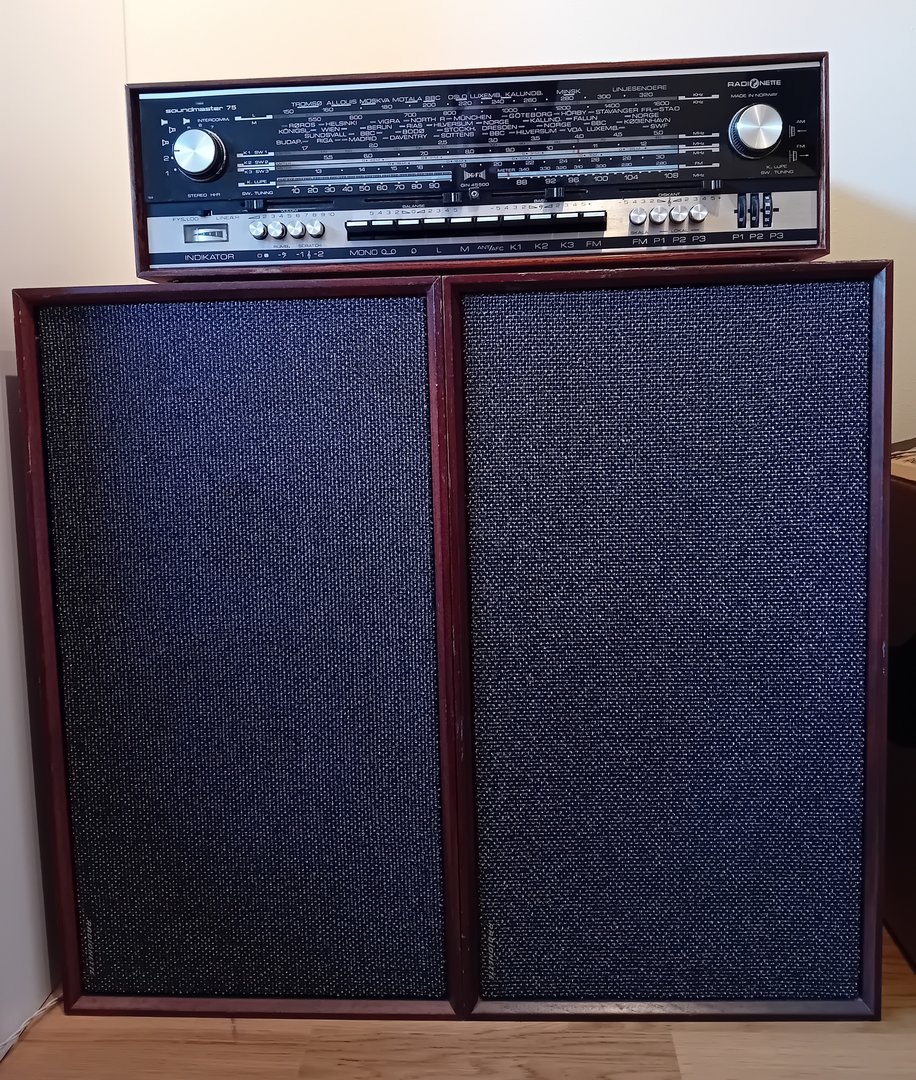

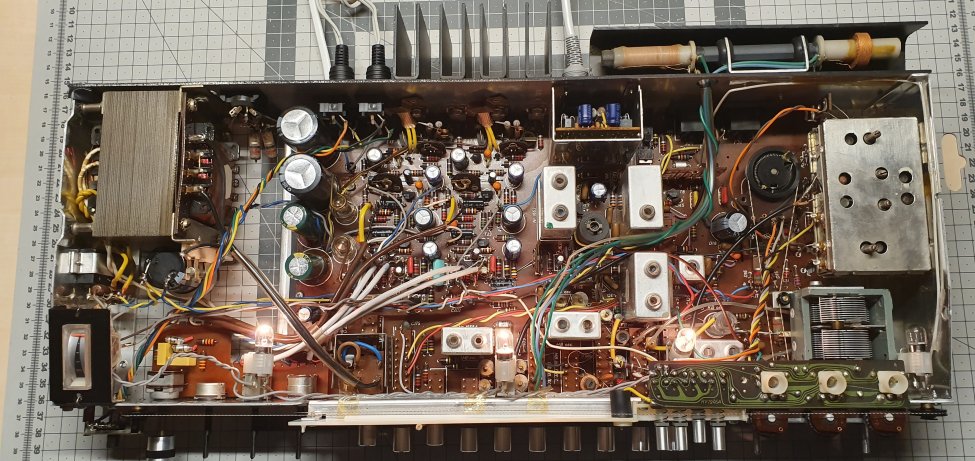

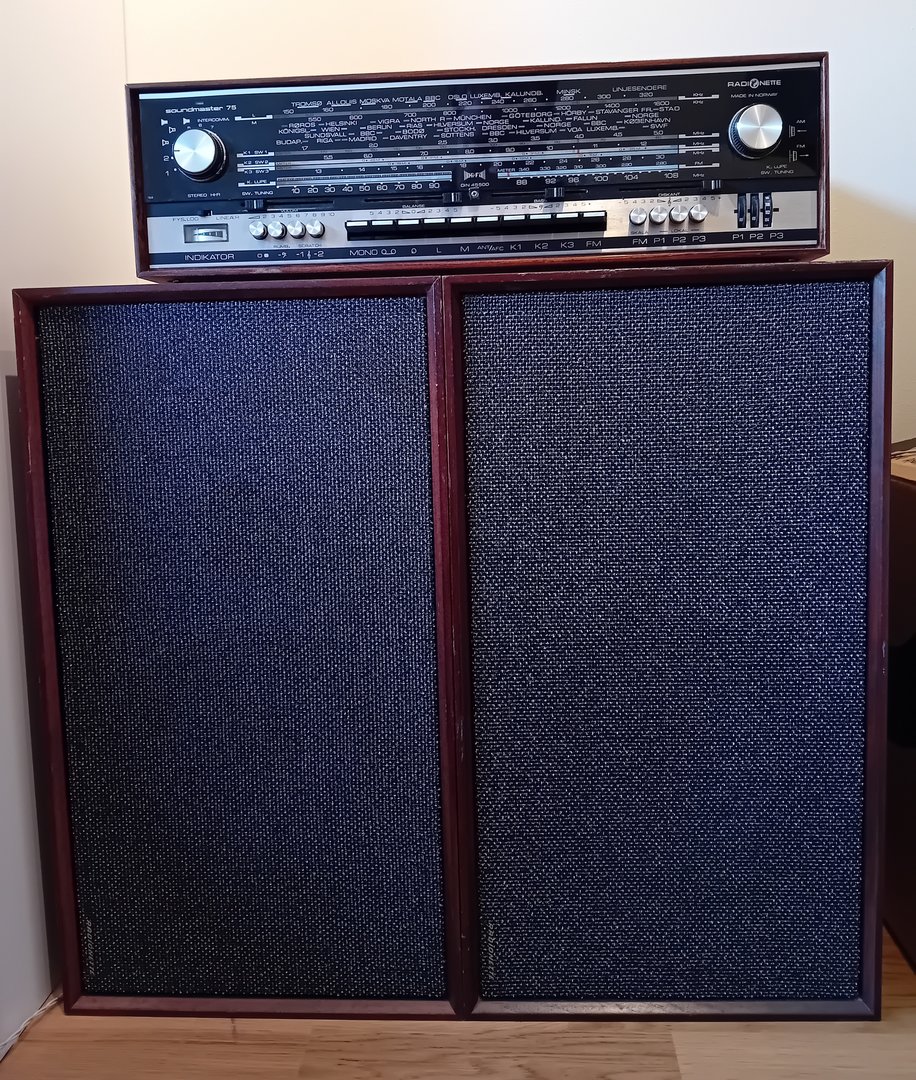

Kan jeg spør hvilke høyttalere det er? Fantastisk designEtter en real overhaling med nye kondensatorer, skalapærer, sikringer og noen nye dioder,
en real rengjøring innvendig og utvendig samt rens og smøring av brytere og potmeter,
(hadde også ute AM-søkeren og renset den for størknet grease, og smurte den opp igjen)

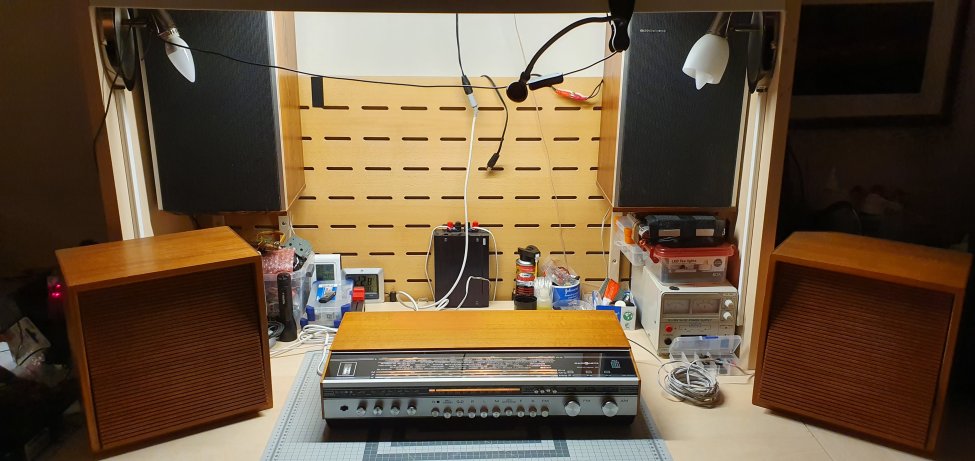

så ble Soundmasteren litt lengre oppe her som ny jo

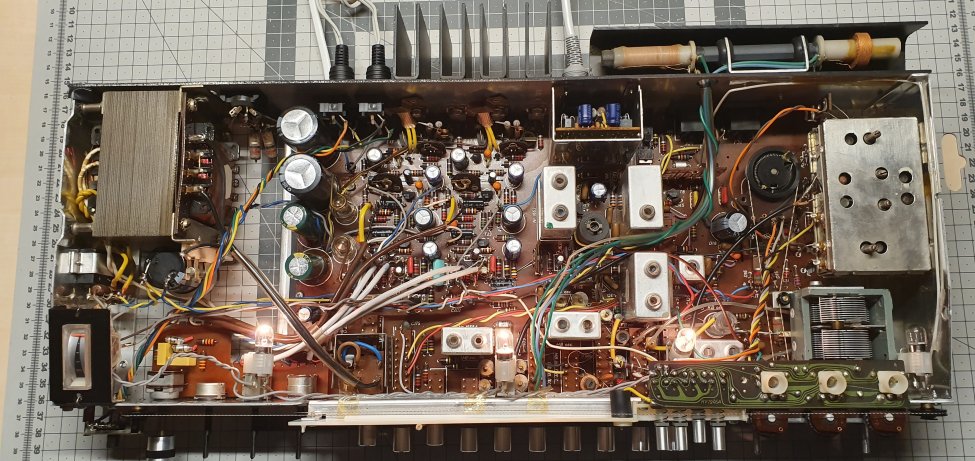

Vis vedlegget 561110

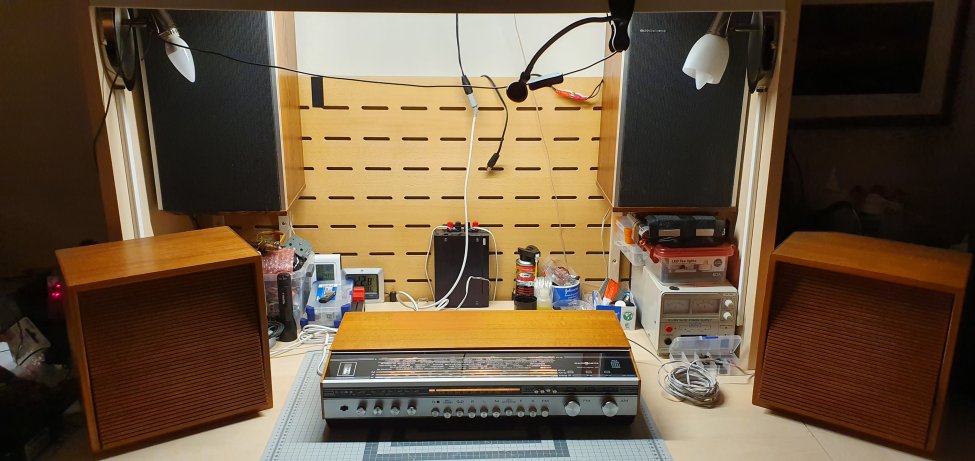

Vis vedlegget 561111
Har nå fått seg nytt hjem på andre siden av landet, der den nok vil skape god-lyd og glede i mange år fremover.
Ja, det er et sett med norskproduserte Philips GL124 høyttalere.Kan jeg spør hvilke høyttalere det er? Fantastisk design
